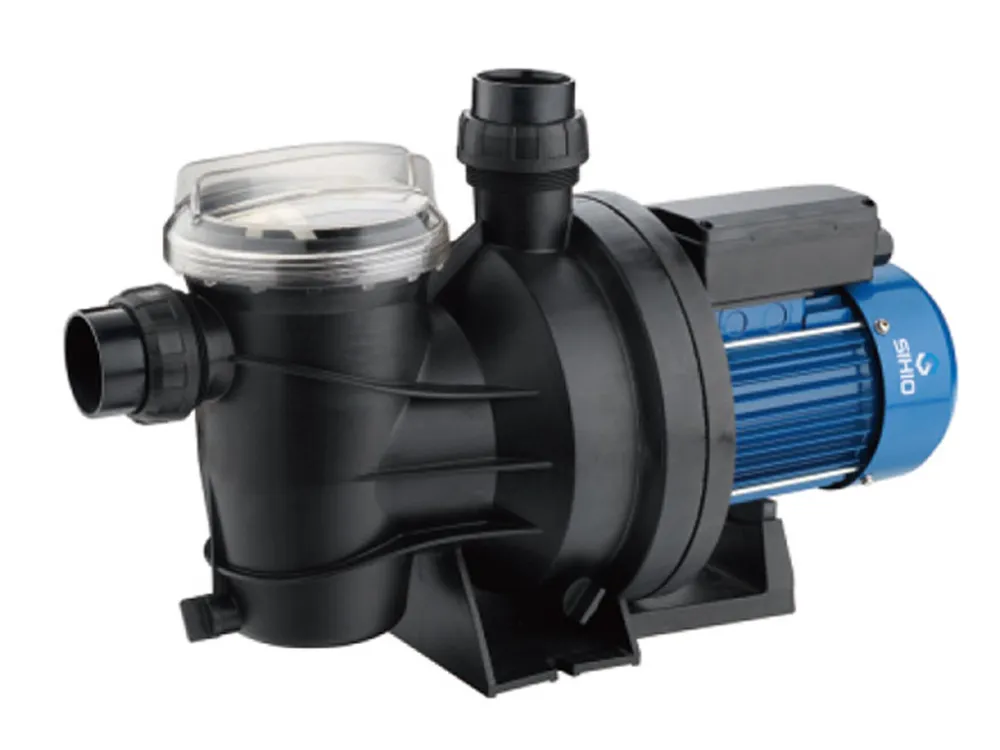

Swimming Pool Pump with plastic pump head and built-in water filter for pool water application only. Aluminum motor housing and iron fan cover is the most classic design for this pump. It works very silent and reliable and esay for installation and operation. It is the best selling swimming pool pump in SIHIO.

INSTALLATIONSAND USE

1.For water circulation in swimming pool filtration system.;

2.For clean and slightdirty water with solids in suspension.;

3.The pump should be installed in an enclosed environment or sheltered from inclement weather.

PERFORMANCE RANGE

1.Flow rate up to 12.5m3/h

2.Head up to 13m

OPERATING CONDITIONS

1.Liquid temperature up to +50 ℃

2.Ambient temperature up to +50 ℃

3.Max. Working pressure 3bar

4.Continuous duty

OPTIONS AVAILABLE ON REQUEST

1.Special mechanical seal

2.Other voltages or 60Hz frequency

3.Higher or lower liquid temperatures

ELECTRIC MOTOR

1.Two-pole induction motor, 50Hz (n = 2850rpm)

2.Single phase 220V-240V

3.Three phase 380V-415V

4.With thermal protector incorporated into the winding

5.Insulation class F

6.Protection IP66

PERFORMANCE DATA
