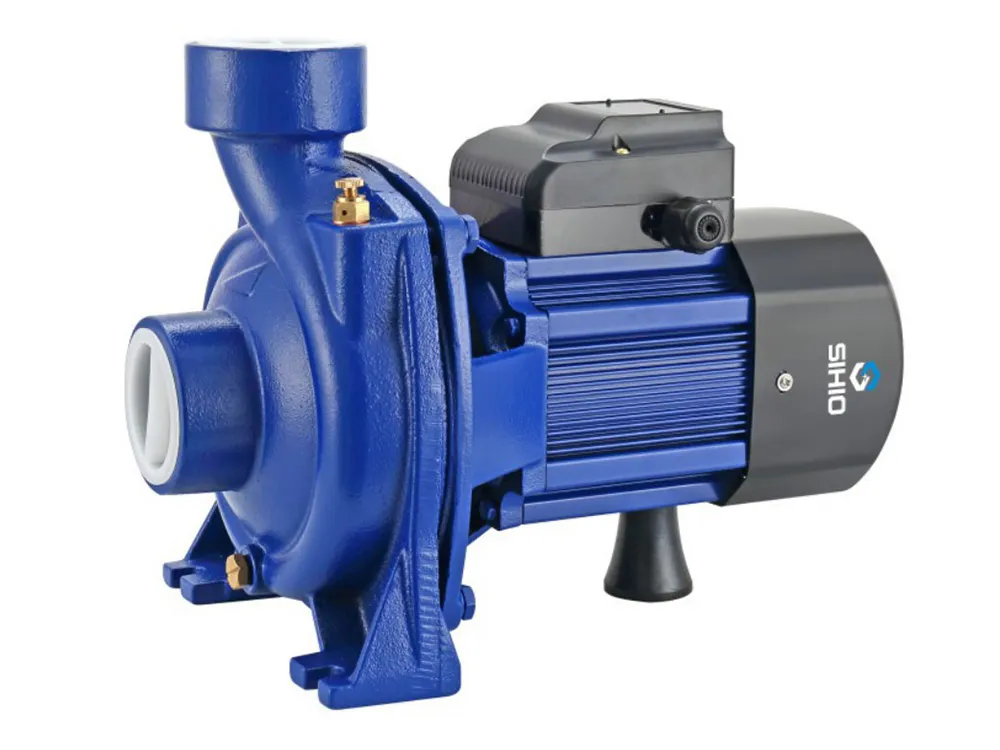

TECHNICAL DATA OF SOLO DC INPUT SOLAR PERIPHERAL PUMP

ITEM	AC Input Voltage(V)	DC input Voltage(V)	Power(w)	Max. Flow(m³/h)	Max.Head(m)	Outlet(in)	Open circuit voltage(VOC)	Solar Panels Suggestion
								Voltage (V)	Power (w)	Quantity (pcs)	Connection
AC/DCHF25-18-750	100-264V	108-410V	750	25	18	2"X2"	＜430V	36	340	3
AC/DCHF25-24-1100	100-264V	108-410V	1100	5	24	2"X2"	＜430V	36	340	4
AC/DCHF50-17-1500	100-264V	108-410V	1500	50	17	2"X2"	＜430V	36	340	6
AC/DCHF60-15-2200	100-264V	108-410V	2200	50	15	2"X2"	＜430V	36	340	8

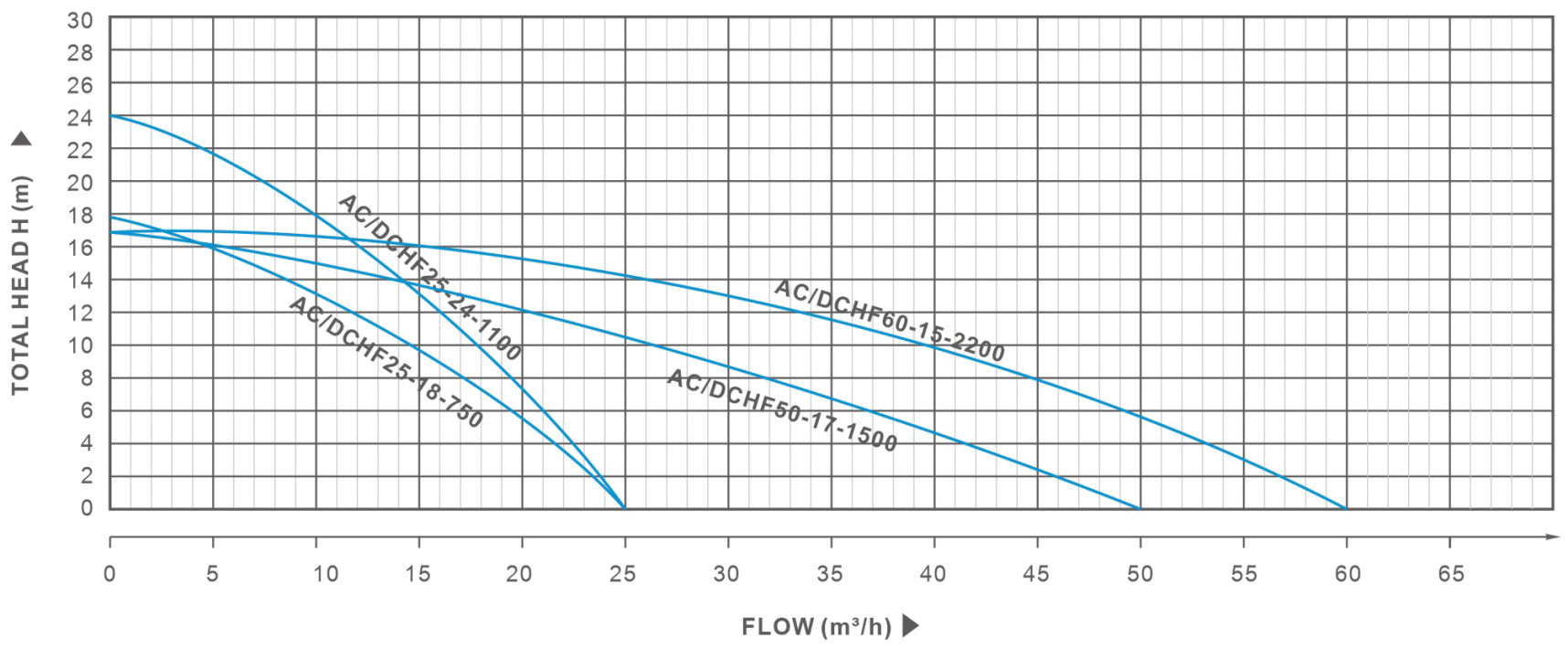

PEPFORMANCE CURVES:

FEATURES OF AC DC POWERED SOLAR Swimming Pool Pump:

1.Power input type (Auto-switch controller): direct Current and alternating Current input alternating. When solar powered condition is not fulfilled, the pump will work under electricity automatically. When DC mode condition is fulfilled, it will operate under dc powered.

2.Pump input type (Complementairy hybrid controller): direct Current and alternating Current input hybrid. When DC mode condition is fulfilled, it will operate under dc powered. When DC power is too less to support pump operation, the Direct Current and Alternate Current will work at the same time.

3.AC power as a complementairy.

4.Less noisy & high efficiency operation. The solar pumps take permanent magnet Brushless motor. The Current of it is controlled electronically, as this results in less electro-magnettic nosie and high-efficiency performance.

FUNCTION OF SIHIO SOLAR SURFACE PUMP:

1.MPPT.

2.Thermal protection.

3.Anti-dry run protection.

4.Anti-block protection.

5.Voltage & Current & Power protection.

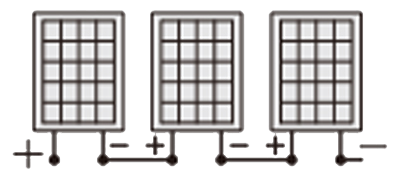

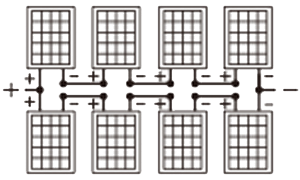

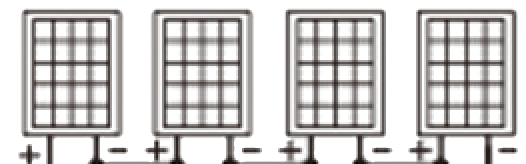

WIRING & APPLICATION OF DC PV PERIPHERAL SURFACE PUMP :

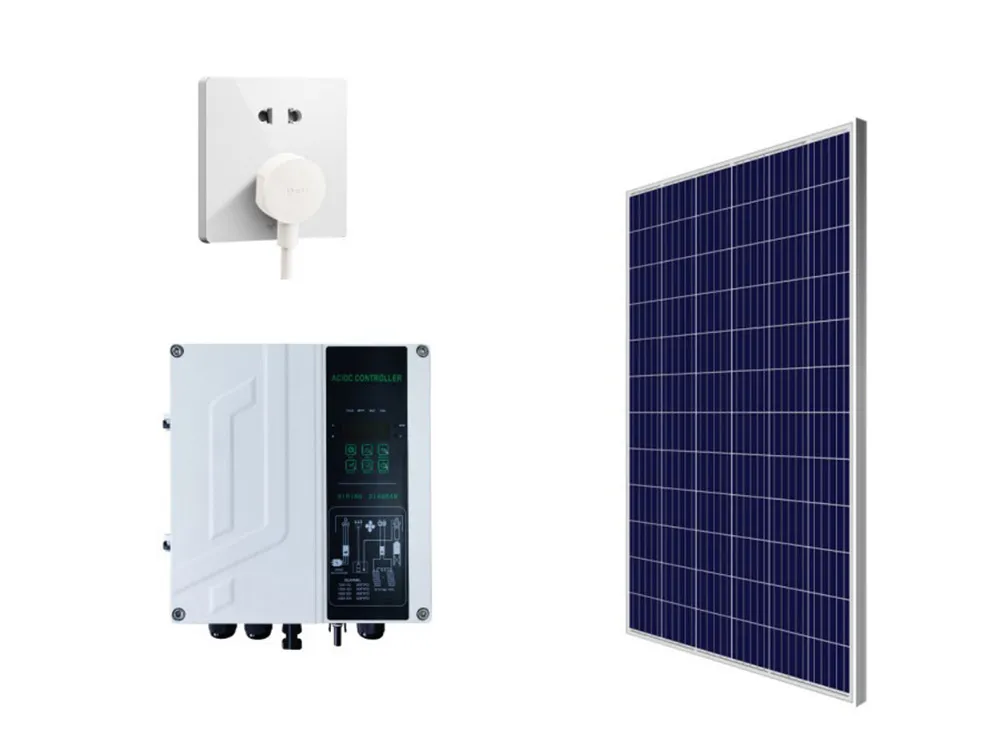

PACKAGE OF SOLAR AC DC POWERED HYBRIDE PERIPHERAL PUMP:

1.Solar ac dc hybrid input peripherl water pump - 1 piece.

2.Suitable ac dc hybrid complementairy controller / auto-switch controller - 1 piece.

3.Accessary kits - 1 set.

4.User's manual - 1 piece.

ACCESSARY KITS FOR DC QB PERIPHERAL SERIES SOLAR SURFACE PUMP:

SERVICES FOR OEM CUSTOMERS:

1.Manage your own brand for solar pump business? Supported. Please provide company registered certificates.

2.Customized packing? Ordered quantity of Solar Water Pumps >=100, Supported.

3.Choose an unique color only for your brand? Ordered quantity of solar peripheral pump & centrifugal pump & JET pump >=100 pieces, Supported. Order quantity of swimming pool pump series >=300pcs, Supported.

4.Payment methods & Terms: Negotiation.

5.Trade terms: Choosing a way which is convinent for buyer.
