TECHNICAL DATA OF SOLO DC INPUT SOLAR PERIPHERAL PUMP

ITEM	Voltage(V)	Best input Voltage(DC)	Power(w)	Max. Flow(m3/h)	Max.Head(m)	Outlet(in)	Open circuit voltage(VOC)	Solar Panels Suggestion

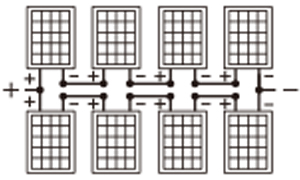

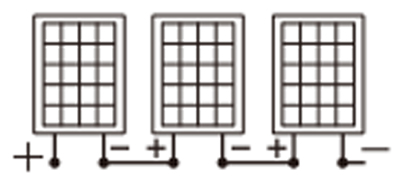

								Voltage (V)	Power (w)	Quantity (pcs)	Connection
4DSP5.5-50-48-500	48	60-90V	500	5.5	50	1.25"	< 100V	36	330	2
4DSP5.5-65-48-750	48	60-90V	750	5.5	65	1.25"	<100V	36	250	4
4DSP5.5-75-72- 750	72	90-120V	750	5.5	75	1.25"	<150V	36	330	3
4DSP5.5-110-72-1100	72	90-120V	1100	5.5	110	1.25"	<150V	36	250	8
4DSP7.5-60-72-750	72	90-120V	750	7.5	60	1.25"	<150V	36	330	3
4/6DSP30-19-72-1100	72	90-120V	1100	30	19	3"	<200V	36	250	8
4DSP5.5-85-110-750	110	120-150V	750	5.5	85	1.25"	<200V	36	250	8
4DSP5.5-125-110-1100	110	120-150V	1100	5.5	125	1.25"	<200V	36	250	8
4DSP5.5-165-110-1300	110	120-150V	1300	5.5	165	1.25"	<200V	36	250	8
4DSP5-205-110-1500	110	120-150V	1500	5	205	1.25"	<200V	36	250	8
4DSP7-95-110-1100	110	120-150V	1100	7	95	1.25"	< 200V	36	250	4
4DSP7-120-110-1300	110	120-150V	1300	7	120	1.25"	<200V	36	250	8
4DSP11-38-110-750	110	120-150V	750	11	38	1.5"	<200V	36	300	8
4DSP11-68-110-750	110	120-150V	750	11	68	1.5"	<200V	36	250	8
4DSP11-90-110-1500	110	120-150V	1500	11	90	1.5"	<200V	36	250	8
4DSP19-40-110-1500	110	120-150V	1500	19	40	2"	<200V	36	250	8
4DSP22-30-110-1300	110	120-150V	1300	22	30	2"	<200V	36	250	8
4DSP22-45-110-1300	110	120-150V	1300	22	45	2"	<200V	36	250	6
4/6DSP36-22-110-1500	110	120-150V	1500	36	22	3"	<200V	36	300	6
4DSP5.5-108-150-1100	150	150-430V	1100	5.5	108	1.25"	<430V	36	300	6
4DSP5.5- 146-150-1300	150	200-430V	1300	5.5	146	1.25"	<430V	36	300	6
4DSP7.5-85-150-1300	150	200-430V	1300	7.5	85	1.5"	<430V	36	340	6
4/6DSP30-19-150-1100	150	200-430V	1100	30	19	3"	<430V	36	340	6
4DSP5-225-200-1500	200	200-430V	1500	5	225	2"	<430V	36	340	6
4DSP7.5-108-200-1500	200	200-430V	1500	7.5	108	2"	<430V	36	340	6
4DSP11-65-200-1500	200	200-430V	1500	11	65	2"	<430V	36	340	6
4DSP19-38-200-1500	200	200-430V	1500	19	38	3"	<430V	36	340	6
4DSP25-26-200-1500	200	200-430V	1500	25	26	1.25"	<430V	36	300	10
4/6DSP36-22-200-1500	200	200-430V	1500	36	22	1.25"	<430V	36	300	10
4SP5-265-300-2200	300	300-430V	2200	5	265	1.5"	<430V	36	300	10
4SP7-165-300-2200	300	300-430V	2200	7	165	2"	<430V	36	300	10
4SP11-120-300-2200	300	300-430V	2200	11	120	2"	<430V	36	300	10
4SP19-65-300-2200	300	300-430V	2200	19	65	3"	<430V	36	300	10
4SP25-46-300-2200	300	300-430V	2200	25	46	3"	<430V	36	300	10

PEPFORMANCE CURVES:

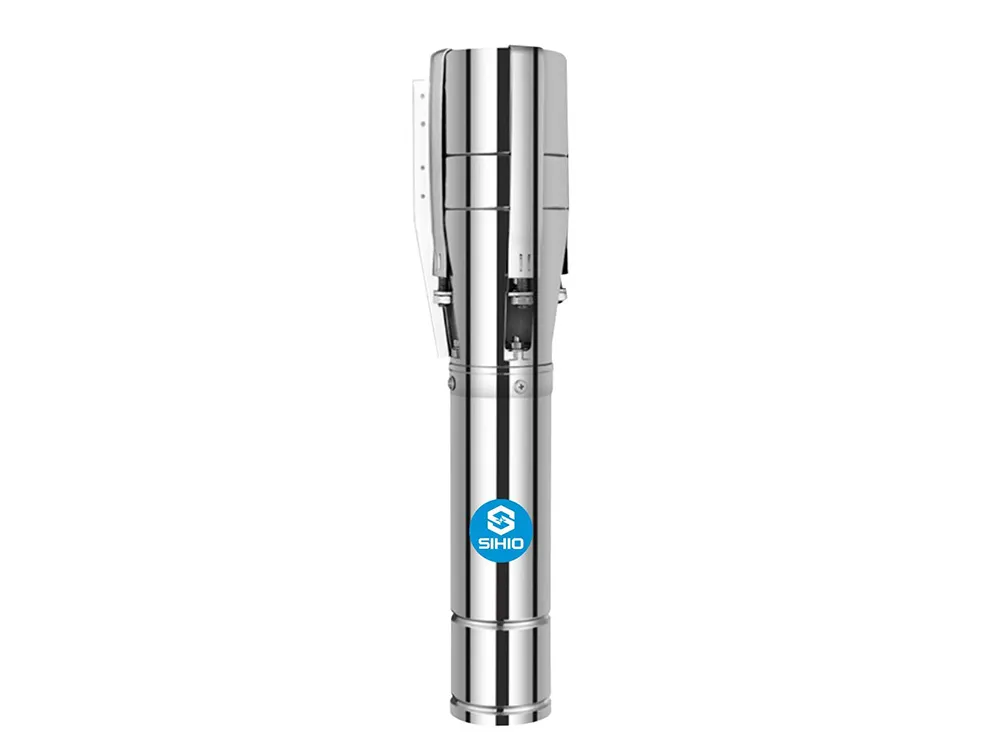

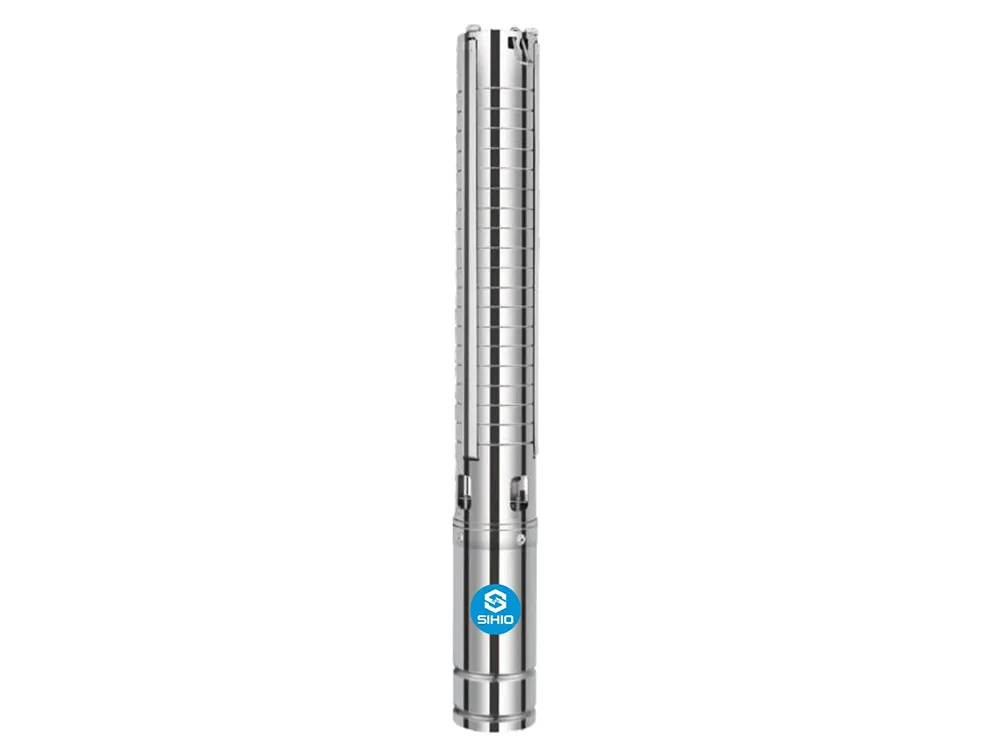

FEATURES OF 3 INCH SOLAR BOREHOLE PUMP:

1.Power input type : Solo Direct Current.

2.Less noisy & high efficiency operation. The solar pumps take permanent magnet Brushless motor. The Current of it is controlled electronically, as this results in less electro-magnettic nosie and high-efficiency performance.

3.Battery is not neccessary in the solar pumpping system. If a battery is planned to be to connected in it, a battery charger ir required.

FUNCTION OF SIHIO SOLAR BOREHOLE WATER PUMPS:

1.Integrated DSP&MPPT(Maximun Power Point remote control etc.

2.Dry running protection

3.Suitable for Wide DC voltage Operation.

4.Battery Operation,low voltage disconnect for battery tracking.

5.Overload and high Adjustable speed control of motor.

6.Temperature Protection and against reverse polarity.

APPLICATION:

1.lrrigation in horticulture & agriculture.

2.Livestok Watering.

3.Gardens or fountains.

4.Domestic water supply.

5.Pond management.

6.Small scale service industries.

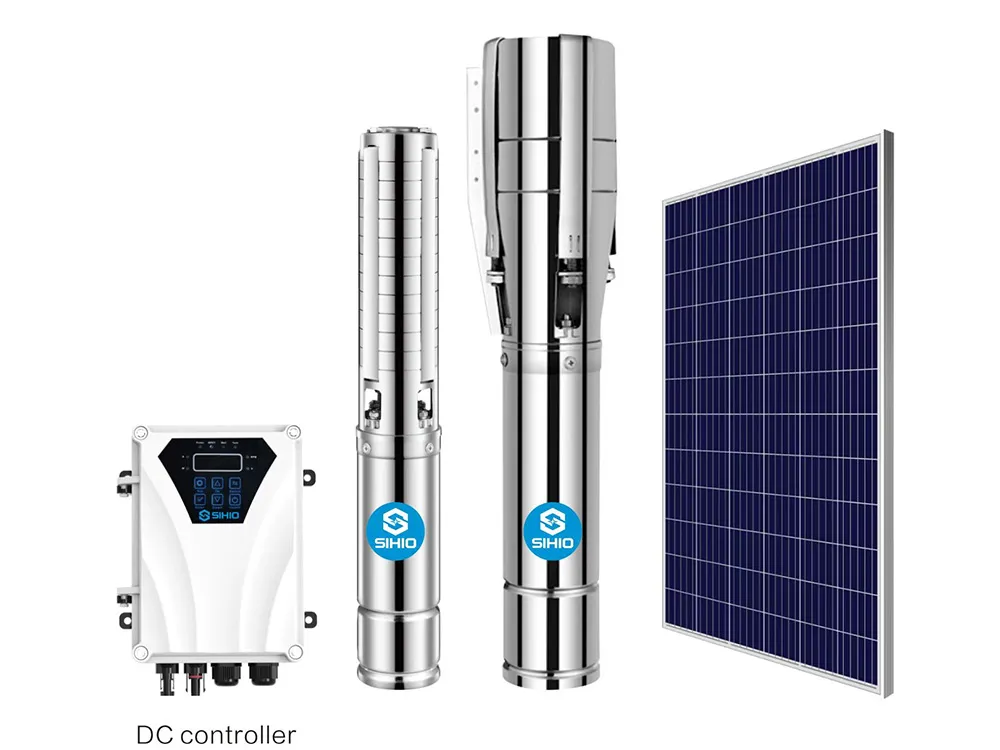

PACKAGE OF SOLAR AC DC POWERED HYBRIDE PERIPHERAL PUMP:

1.Solar powered Deep well pump - 1 piece.

2.Accessary kits - 1 set.

3.DC Controller - 1 piece.

4.User's manual - 1 piece.

ACCESSARY KITS FOR DC QB PERIPHERAL SERIES SOLAR SURFACE PUMP:
