TECHNICAL DATA OF SOLO DC INPUT SOLAR PERIPHERAL PUMP

>

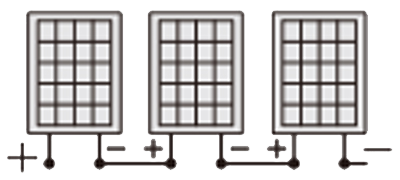

ITEM	Voltage(V)	Voltage(DC)	Power(w)	Max. Flow(m³/h)	Max.Head(m)	Outlet(in)	Solar Panels Suggestion
							Voltage (V)	Power (w)	Quantity (pcs)	Connection
4SD7-56-110-750-A/D	85V-280V	80V-430V	750	7	56	1.25"	36	340	3
4SD9-55-110-750-A/D	85V-280V	80V-430V	750	9	55	2”	36	340	3
4SD13-38-110-750-A/D	85V-280V	80V-430V	750	13	38	2”	36	340	3
4SD16-35-110-750-A/D	85V-280V	80V-430V	750	16	35	2"	36	340	3
4SD5.5-68-150-1300-A/D	85V-280V	80V-430V	1300	5.5	68	1.25"	36	300	6
4SD7.5-85-150-1100-A/D	85V-280V	80V-430V	1100	7.5	85	1.25"	36	300	5
4SD7-110-150-1300-A/D	85V-280V	80V-430V	1300	7	110	1.25"	36	300	6
4SD9-55-150--1100-A/D	85V-280V	80V-430V	1100	9	55	2"	36	300	5
4SD9-68-150--1300-A/D	85V-280V	80V-430V	1300	9	68	2"	36	300	6
4SD13-52-150-1100-A/D	85V-280V	80V-430V	1100	13	52	2"	36	300	5
4SD13-68-150-1300-A/D	85V-280V	80V-430V	1300	13	68	2"	36	300	6
4SD16-50-150-1100-A/D	85V-280V	80V-430V	1100	16	50	2"	36	300	5
4SD16-65-150-1300-A/D	85V-280V	80V-430V	1300	16	65	2"	36	300	6
4SD7-135-200-1500-A/D	85V-280V	80V-430V	1500	7	135	1.25"	36	340	6
4SD9-68-150-1300-A/D	85V-280V	80V-430V	1300	9	68	2"	36	300	6
4SD13-80-200-1500-A/D	85V-280V	80V-430V	1500	13	80	2"	36	340	6
4SD16-75-200-1500-A/D	85V-280V	80V-430V	1500	16	75	2”	36	340	6
4SD18-60-200-1500-A/D	85V-280V	80V-430V	1500	18	60	2"	36	340	6
4SD7-165- 300-2200-A/D	85V-280V	80V-430V	2200	7	165	1.25”	36	480	6
4SD9-125-300-2200-A/D	85V-280V	80V-430V	2200	9	125	2”	36	480	6
4SD13-95-300-2200-A/D	85V-280V	80V-430V	2200	13	95	2”	36	480	6
4SD16-85-300-2200-A/D	85V-280V	80V-430V	2200	16	85	2"	36	480	6
4SD18- 70-300-2200-A/D	85V-280V	80V-430V	2200	18	70	2"	36	480	6

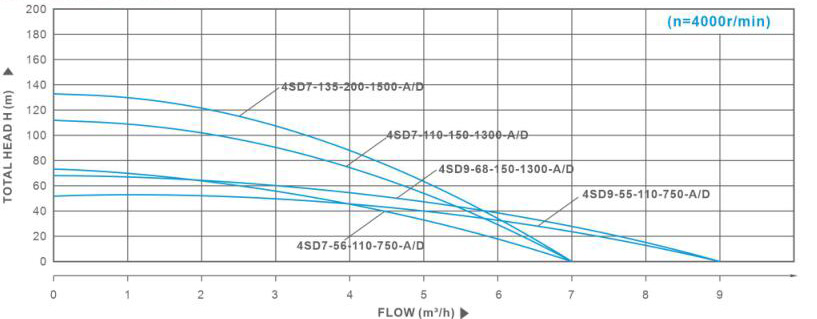

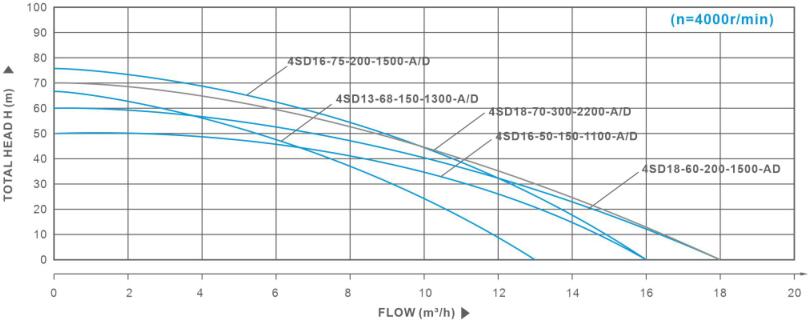

PERFORMANCE CURVE:

ADVANTAGE:

1.Maintenance-Free Brushless DC Motor.

2.Integrated DSP&MPPT(Maximun Power Point remote control etc..

3.Suitable for Wide DC voltage Operation.

4.Control inputs for well probe, dry running protection.

5.Battery Operation,low voltage disconnect for battery tracking.

6.Overload and high Adjustable speed control of motor.

7.Temperature Protection and against reverse polarity.

APPLICATION:

1.lrrigation in horticulture & agriculture.

2.Livestok Watering.

3.Gardens or fountains.

4.Domestic water supply.

5.Pond management.

6.Small scale service industries.
