TECHNICAL DATA OF SOLO DC INPUT SOLAR PERIPHERAL PUMP

ITEM	Voltage(V)	Best input Voltage(DC)	Power(w)	Max. Flow(m3/h)	Max.Head(m)	Outlet(in)	Open circuit voltage(VOC)	Solar Panels Suggestion
								Voltage (V)	Power (w)	Quantity (pcs)	Connection
DCTP3-35-36-400	36	36-48V	400	2.8	35	1"×1”	＜50V	36	300	2
DCTP4-40-48-550	48	48-72V	550	4	40	1"×1	＜50V	36	350	2
DCTP4-55-72-750	72	72-108V	750	4	55	1"×1	＜150V	36	350	3

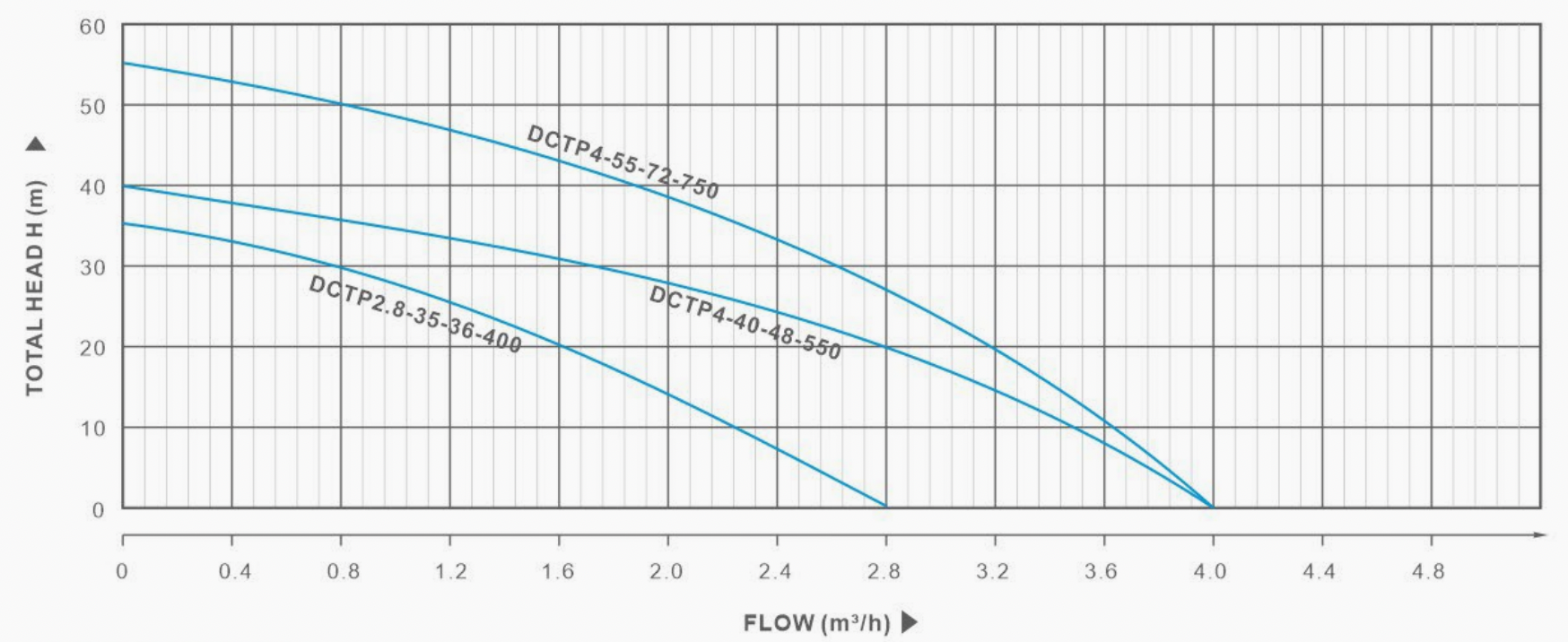

PEPFORMANCE CURVES:

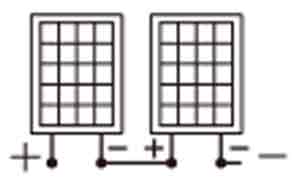

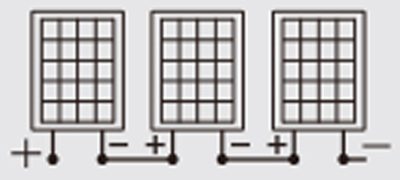

WIRING & APPLICATION OF DC PV PERIPHERAL SURFACE PUMP :

FEATURES OF DCQB SOLAR PERIPHERAL PUMP:

1.Power input type : Solo Direct Current.

2.Less noisy & high efficiency operation. The solar pumps take permanent magnet Brushless motor. The Current of it is controlled electronically, as this results in less electro-magnettic nosie and high-efficiency performance.

3.Battery is not neccessary in the solar pumpping system. If a battery is planned to be to connected in it, a battery charger ir required.

4.The wiring between solar pump and controller is finished by manufacturer before go to market. The controller and pump is not seperatable. A system switch is equied to control the ON/OFF of the pumpping system.

FUNCTION OF SIHIO SOLAR SURFACE PUMP:

MPPT.

Thermal protection..

Anti-dry run protection.

Anti-block protection.

Voltage & Current & Power protection.

PACKAGE OF SOLAR AC DC POWERED HYBRIDE PERIPHERAL PUMP:

1.New designed solar powered peripheral pump - 1 piece.

2.Accessary kits - 1 set

3.User's manual - 1 piece

ACCESSARY KITS FOR DC QB PERIPHERAL SERIES SOLAR SURFACE PUMP:

SERVICES FOR OEM CUSTOMERS:

1.Manage your own brand for solar pump business? Supported. Please provide company registered certificates.

2.Customized packing? Ordered quantity of Solar Water Pumps >=100, Supported. .

3.Choose an unique color only for your brand? Ordered quantity of solar peripheral pump & centrifugal pump & JET pump >=100 pieces, Supported. Order quantity of Swimming Pool Pump series >=300pcs, Supported.

4.Payment methods & Terms: Negotiation.

5.Trade terms: Choosing a way which is convinent for buyer.
