INSTRUCTIONS

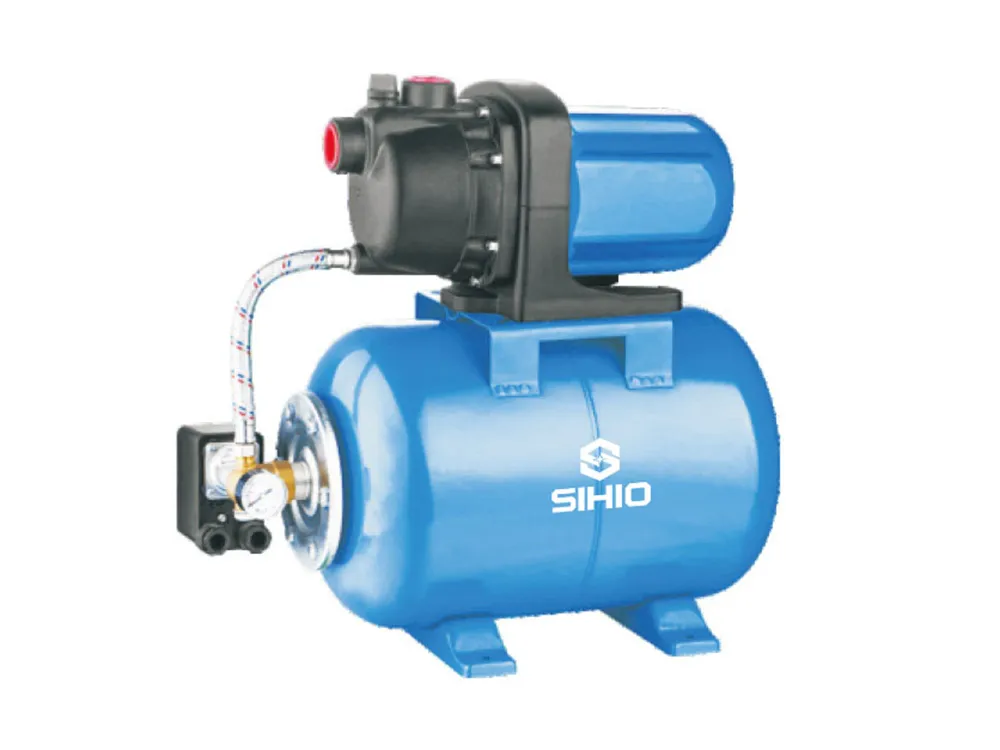

Automatic supercharging system with plastic pump head jet pump and 24L carbon steel pressure tank. The pump is equipped with mechanical pressure control switch and pressure gauge. It works very quietly and reliably, and is especially suitable for increasing pressure from a water system.
PERFORMANCE DATA AT n=2900 rpm/min
PERFORMANCE PARAMETER
Model | Inlet/Outlet | Power | Max.Head | Max.Flow | Max.Suction | Pressure Switch | |
Single phase | Inch | KW | HP | m | m3/h | m | kg/cm2 |
GP600A | 1"x1" | 0.6 | 0.8 | 35 | 2.8 | 7 | 1.2-3.0 |
GP800A | 1"x1" | 0.8 | 1.0 | 40 | 3.0 | 8 | 1.2-3.0 |
GP1000A | 1"x1" | 1.0 | 1.5 | 44 | 3.2 | 8 | 1.2-3.0 |
GP1200A | 1"x1" | 1.2 | 1.8 | 46 | 3.5 | 8 | 1.2-3.0 |
