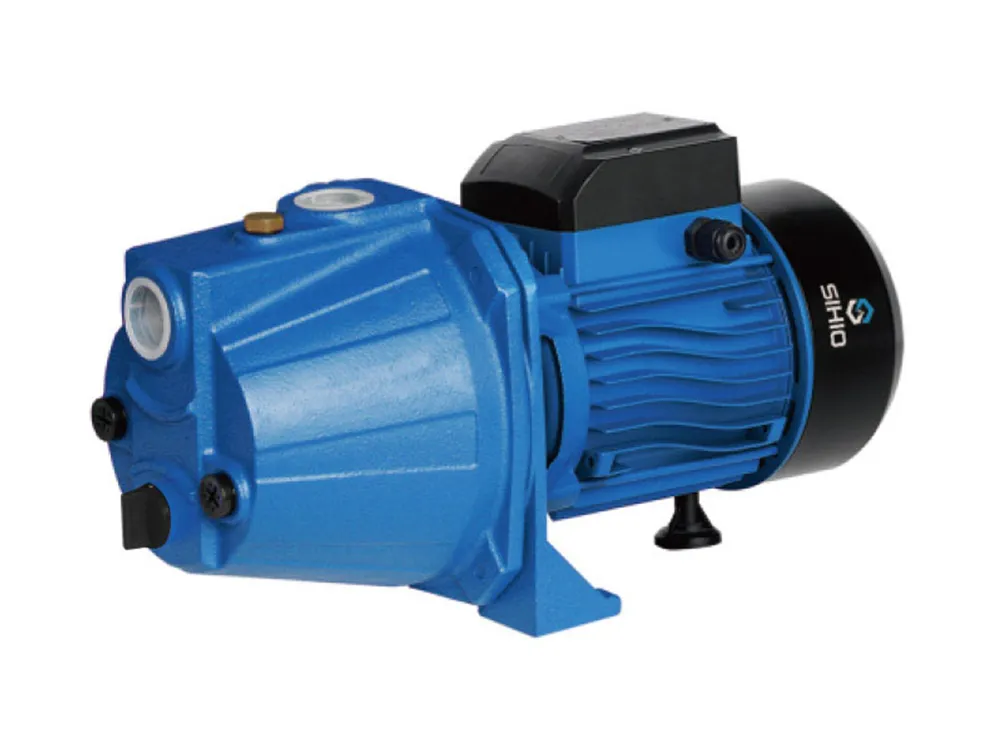

JET-S Brass PPO Aluminium Impeller Self Primming Pump 0.5HP

SIHIO JET electric self priming pump is widely used in shallow well, borehole well, river and etc for howsehold water supply.

OPERATING LIMITS

1.Suction lift up to 8m

2.Clean water, non-corrosion liquid

3.Fluid temperature up to 40 °C

4.Maximum ambient temperature 40 °C

STRUCTURAL CHARACTERISTICS

1. Brass impeller

2.100% Copper winding

3. Single/Three-phase, 50/60Hz (as customized)

4.Stainless steel mechanical seal (graphite to ceramic)

5. Protection IP44

6. C&U bearing or local bearing

7.Thermal overload protector

8. Anti-rust shaft (Hi-Cr plated or welded stainless steel)

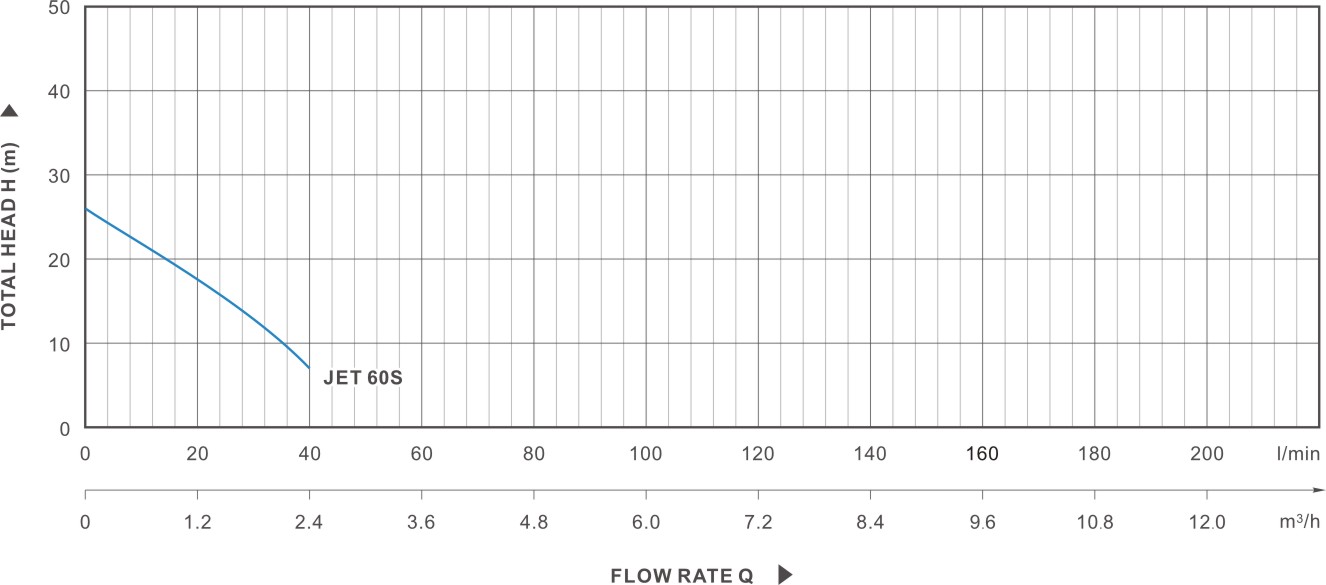

PERFORMANCE DATA AT n=2900 rpm/min

Performance parameter
