OPERATING LIMITS

1.Suction lift up to 8m

2.Clean water, non-corrosion liquid

3.Fluid temperature up to 40 °C

4.Maximum ambient temperature 40 °C

STRUCTURAL CHARACTERISTICS

1. Brass impeller

2.100% Copper winding

3. Single/Three-phase, 50/60Hz (as customized)

4.Stainless steel mechanical seal (graphite to ceramic)

5. Protection IP44

6. C&U bearing or local bearing

7.Thermal overload protector

8. Anti-rust shaft (Hi-Cr plated or welded stainless steel)

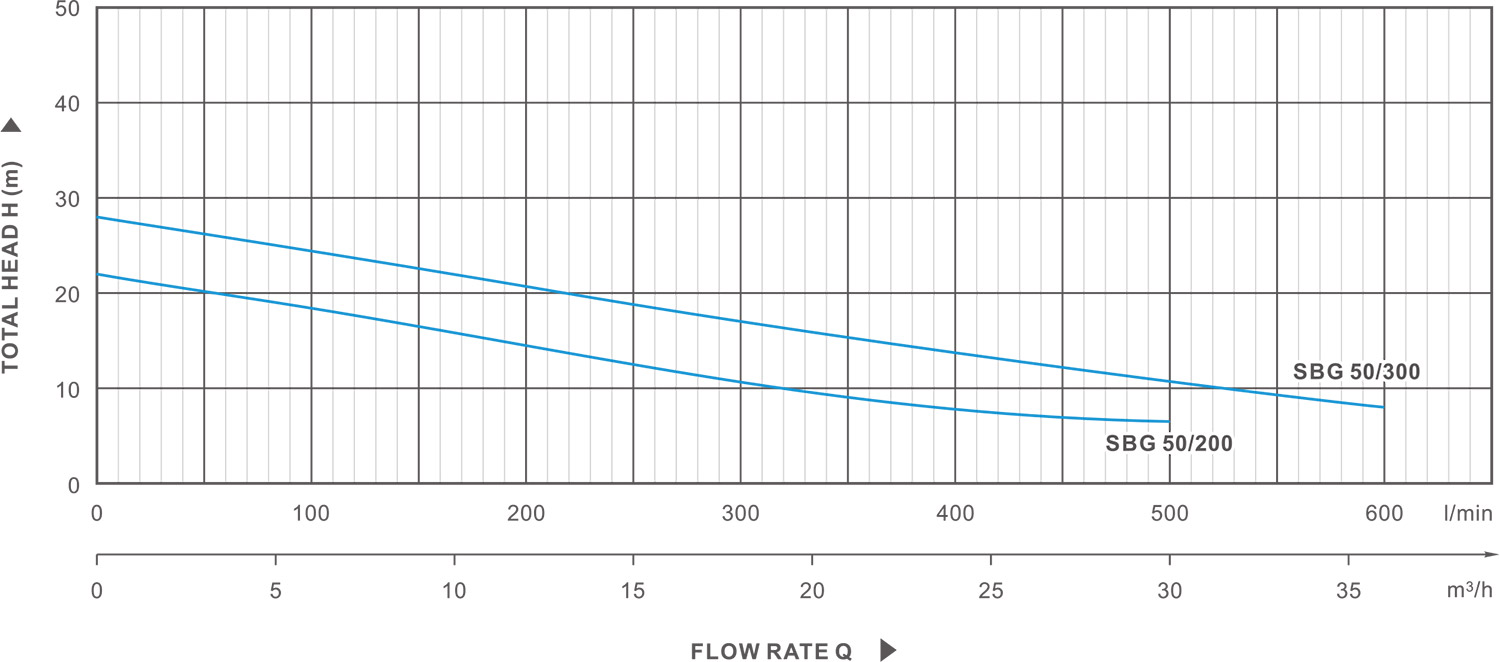

PERFORMANCE DATA AT n=2900 rpm/min

Performance parameter
