PRODUCT USE

The pump is applicable for cold/hot water circulation and pressurization; particularly, the shower set might lead to fire because of low or unstable water pressure and installation &application of this pump can easily totally solve the problem; in addition, it is also applicable for pressurization water supple of the household low water pressure, water supply of solar water heater, hot-water circulation of boiler, and circulation pressurization of air conditioner &refrigerating system.

WORKING CONDITIONS

1.Pumped medium temperature scope: 0°C~+90°C

2.Maximum application environment temperature: +40°C

3.Medium requirement: clean without sundries, mineral oil, stickiness, and corrosiveness;

4.Chemical property: the property is closed to neutral without explosiveness and it is like liquid of water (the content of ethylene glycol is upto 30%)

5.It is necessary to consult the man ufactu rer first if other liquids are extracted

6.Maximum operating pressure: 5 bar

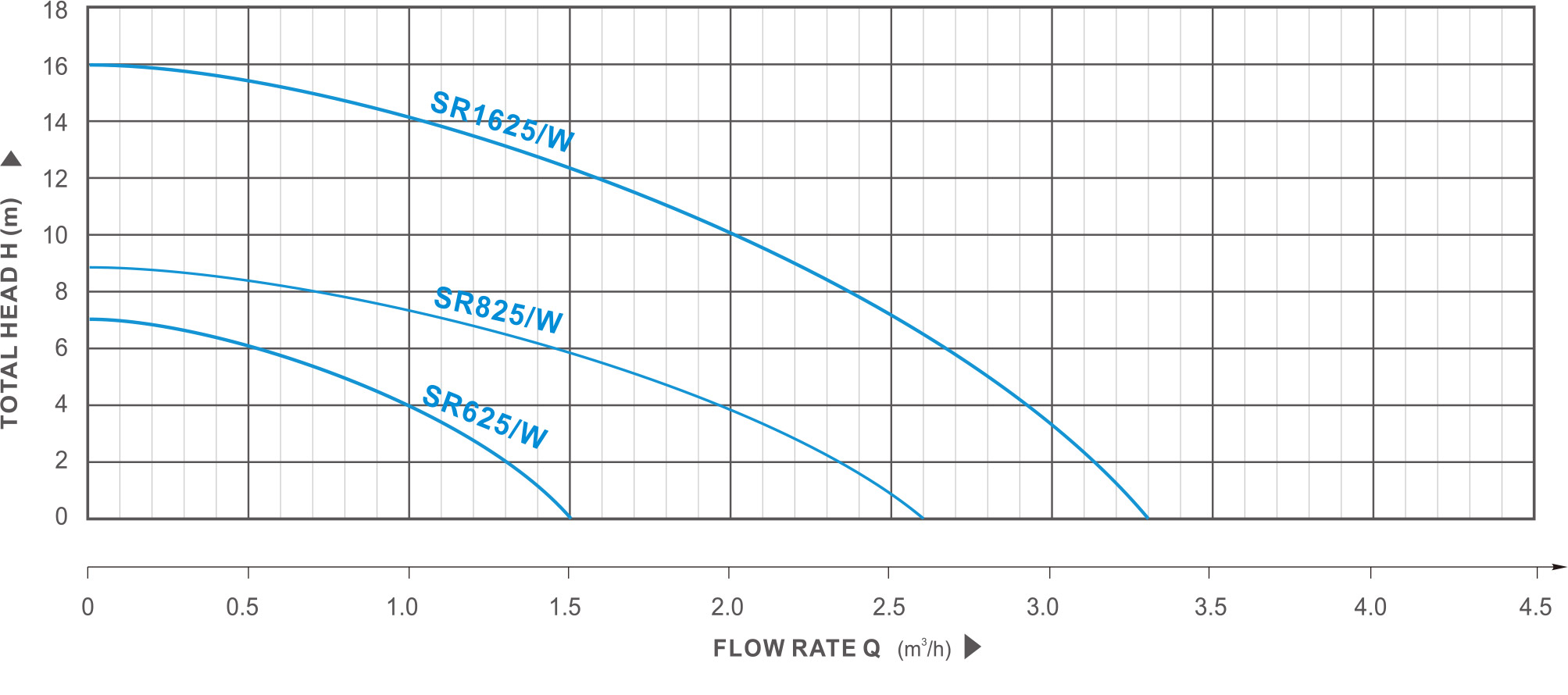

PERFORMANCE DATA AT n=2900 rpm/min

Performance parameter
