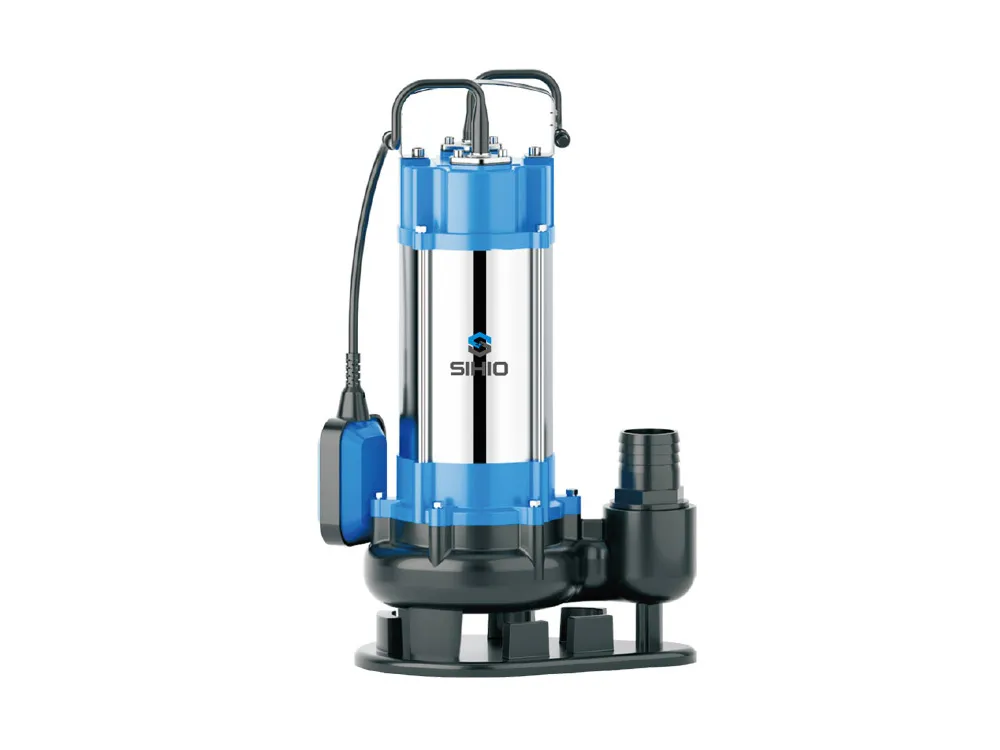

0.5-2HP 1.5 / 2" Submersible Sewage Pump for Drainage

OPERATING LIMITS

1.PH level from 6.5-8.5

2.Maximum sand content is 0.1%. Passage of suspended

3.Solids up to 0. 2mm

4.Voltage fluctuation range:0.9-1.1 times of the rated value

5.Immersion depth from 0. 5m-5m

6.Max medium temperature+40°C

7.Max ambient temperature+40°C

MOTOR INFORMATION

1.Two-pole induction motor

2.Single phase/three phase, 50/60hz (on demand)

3.Thermal protector for single phase

4.Insulation class: B

5.Protection class:IPX8

MATERIAL

1.Pump body: Cast iron

2.Motor housing: Aluminum/iron

3.Impeller: Aluminum

4.Motor wire: Copper

5.Mechanical seal: Ceramic&Graphite

6.Shaft: 45#steel/stainless steel

PERFORMANCE PARAMETER
