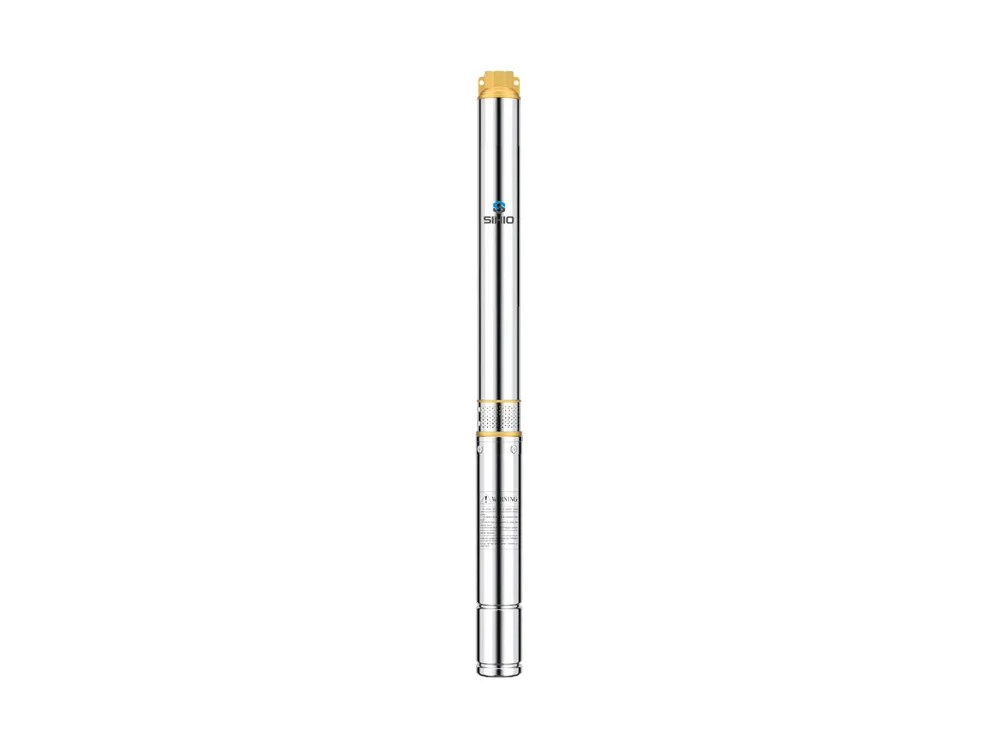

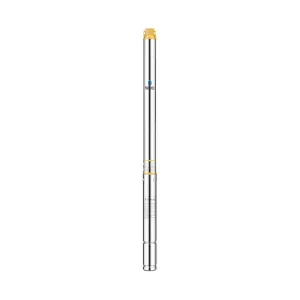

2.5 Inch QJD Well Pump Rated Flow 1 m3/h Max Q 2.4m3/h Max Head 80m

APPLICATION

For water supply from wells or reservoirs

For domestic use, for civil and industrial applications

For garden use and irrigation

MOTORAND PUMP

Rewindable motor or Full obturated screen motor

Single-phase: 220V-240V/50Hz

Equip with start control box or digital auto-control box

Pumps are designed by casing stressed

NEMA dimension standards

Curve tolerance according to ISO 9906

WORKING CONDITIONS

Maximum fluid temperature up to +35℃.

Maximum sand content: 0.25%.

Maximum immersion: 30m.

Minimum well diameter: 2.5".

PERFORMANCE DATA AT n=2900 rpm/min


PERFORMANCE PARAMETER

Model

Inlet/Outlet

Power

(m3/h)

0

0.3

0.6

0.9

1.2

1.5

1.8

2.1

2.4

Single phase

Inch

KW

HP

(L/min)

0

5

10

15

20

25

30

35

40

2.5QJD112-0.18

1"

0.2

0.3

Head

(m)

33

31

29

27

25

21

18

13

6

2.5QJD117-0.25

1"

0.25

0.33

47

44

41

38

35

30

26

19

8

2.5QJD124-0.37

1H

0.37

0.5

66

62

58

54

50

43

36

26

12

2.5QJD131-0.55

1"

0.55

0.75

85

80

75

70

64

55

47

34

15
