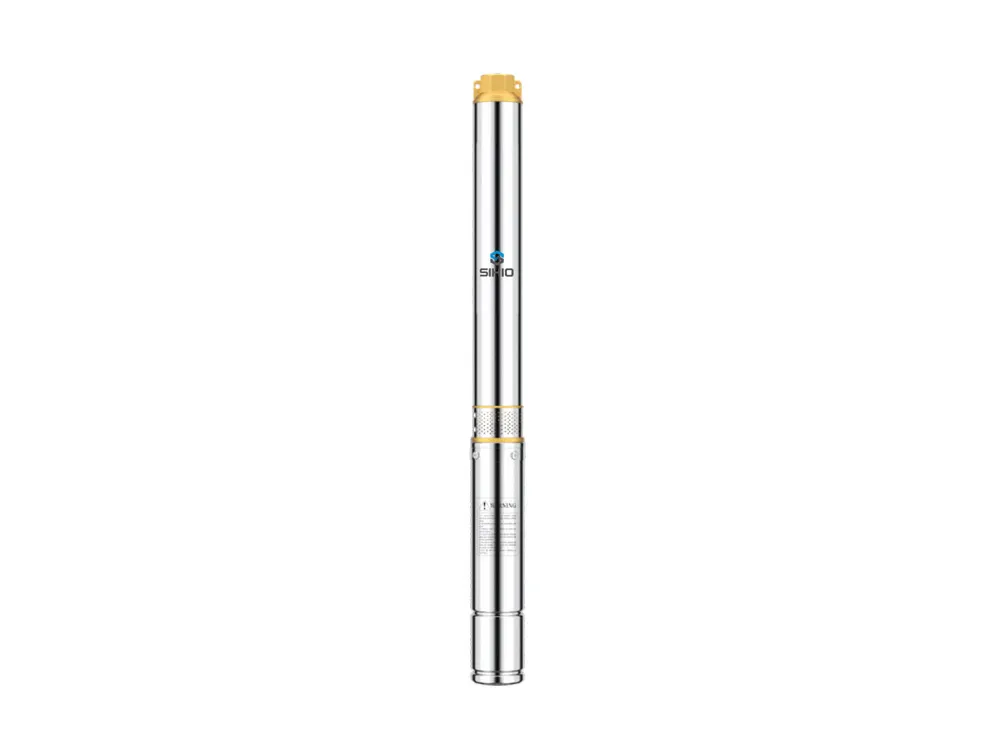

3 Inch QJD Deep Well Pump Rated Q 1000 L/h & 2000 m3/h Max Q 4000 l/h Head up to 168m

APPLICATION

For water supply from wells or reservoirs

For domestic use, for civil and industrial applications

For garden use and irrigation

MOTORAND PUMP

Rewindable motor or Full obturated screen motor

Single-phase: 220V-240V/50Hz

Equip with start control box or digital auto-control box

Pumps are designed by casing stressed

NEMA dimension standards

Curve tolerance according to ISO 9906

WORKING CONDITIONS

Maximum fluid temperature up to +35℃.

Maximum sand content: 0.25%.

Maximum immersion: 30m.

Minimum well diameter: 2.5".

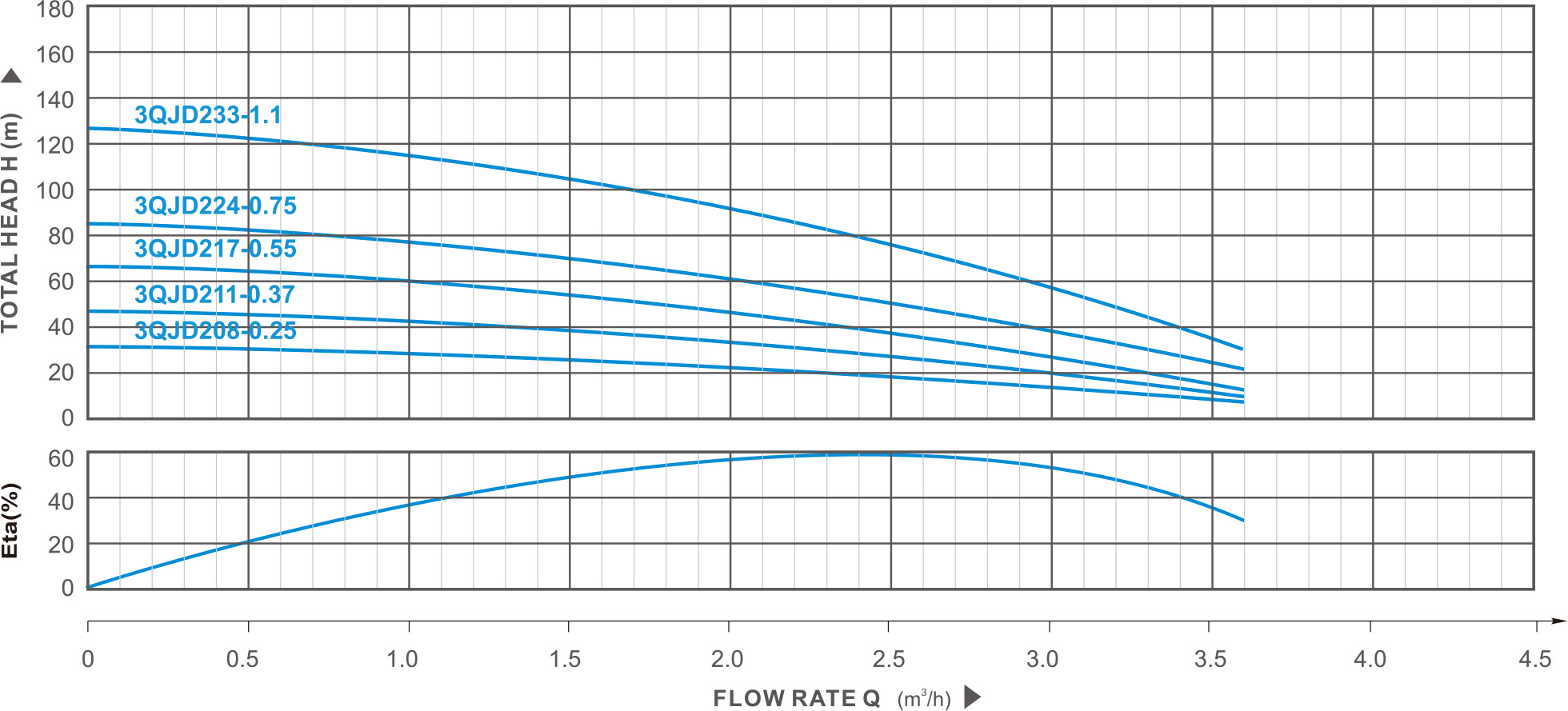

PERFORMANCE DATA AT n=2900 rpm/min



PERFORMANCE PARAMETER

Model

Outlet

Power

(m3/h)

0

0.3

0.6

0.9

1.2

1.5

1.8

2.1

2.4

2.7

3.03.33.6

Single phase

Inch

KW

HP

(L/min)

0

5

10

15

20

25

30

35

40

45

505560

3QJD110-0.25

1"

0.25

0.33

Head

(m)

48

47

47

46

44

40

36

30

24

15



3QJD115-0.37

1"

0.37

0.5

65

64

64

63

60

55

49

41

33

21



3QJD122-0.55

1"

0.55

0.75

91

90

90

88

84

77

68

58

46

29



3QJD130-0.75

r*

0.75

1.0

117

116

115

113

107

99

88

75

59

38



3QJD140-1.1

1"

1.1

1.5

168

168

167

163

155

143

127

108

85

55



3QJD208-0.25

1 1/4"

0.25

0.33

Head

(m)

32

32

31

30

30

29

27

26

24

21

18

13

8

3QJD211-0.37

1 1/4"

0.37

0.5

44

43

43

42

41

39

37

35

32

29

24

18

11

3QJD217-0.55

1 1/4"

0.55

0.75

64

63

62

61

59

57

54

51

47

42

35

27

16

3QJD224-0.75

1 1/4"

0.75

1.0

84

83

82

80

78

75

72

68

62

56

46

35

21

3QJD233-1.1

1 1/4"

1.1

1.5

124

122

121

118

115

111

106

100

91

82

68

52

31
