TECHNICAL DATA OF SOLO DC INPUT SOLAR PERIPHERAL PUMP

ITEM	Voltage(V)	Best input Voltage(DC)	Power(w)	Max. Flow(m³/h)	Max.Head(m)	Outlet(in)	Open circuit voltage(VOC)	Solar Panels Suggestion
								Voltage (V)	Power (w)	Quantity (pcs)	Connection
3DSD3.5-26-24-200	24V	30-48V	200	3.5	26	1.25”	＜50V	36	300	1
3DSD3.5-38-24-300	24V	30-48V	300	3.5	38	1.25”	＜50V	36	250	2
3DSD4-66-48-400	48V	60-90V	400	4	66	1.25”	＜100V	36	300	2
3DSD4-90-48-600	48V	60-90V	600	4	90	1.25”	＜100V	36	250	4
3DSD4-95-48-750	48V	60-90V	750	4	95	1.25”	＜100V	36	250	4
3DSD5.5-50-48-500	48V	60-90V	500	5.5	50	1.5”	＜100V	36	250	4
3DSD6.5-40-48-600	48V	60-90V	500	6.5	40	1.5”	＜100V	36	250	4
3DSD4-100-72-600	72V	90-120V	600	4	100	1.25”	＜150V	36	300	3
3DSD4-108-72-750	72V	90-120V	750	4	108	1.25”	＜150V	36	330	3
3DSD4-123-72-1100	72V	90-120V	1100	4	123	1.25”	＜150V	36	300	6
3DSD6-50-72-600	72V	90-120V	600	6	50	1.5”	＜150V	36	300	3
3DSD6-66-72-750	72V	90-120V	750	6	66	1.5”	＜150V	36	300	3
3DSD7.5-46-72-750	72V	90-120V	750	7.5	46	1.5”	＜150V	36	300	3
3DSD7.5-60-72-900	72V	90-120V	900	7.5	60	1.5"	＜150V
3DSD4-126-110-1100	110V	120-150V	1100	4	126	1.25”	＜200V	36	300	6
3DSD4-145-110-1300	110V	120-150V	1300	4	145	1.25”	＜200V	36	300	6
3DSD4-166-110-1500	110V	120-150V	1500	4	166	1.25”	＜200V	36	300	8
3DSD6-74-110-750	110V	120-150V	750	6	74	1.5”	＜200V	36	300	4
3DSD6-90-110-750	110V	120-150V	750	6	90	1.5”	＜200V	36	300	4
3DSD5.5-122-110-1500	110V	120-150V	1500	5.5	122	1.5”	＜200V	36	300	8
3DSD7.5-53-110-750	110V	120-150V	750	7.5	53	1.5”	＜200V	36	300	4
3DSD7.5-68-110-1100	110V	120-150V	1100	7.5	68	1.5”	＜200V	36	300	6
3DSD7.5-80-110-1500	110V	120-150V	1100	7.5	80	1.5”	＜200V	36	300	8
3DSD5.5-106-110-1300	110V	120-150V	1300	5.5	106	1.25"	＜200V	36	300	6
3DSD7.2-90-110-1500	110V	120-150V	1500	7.2	90	1.5"	＜200V	36	340	6
3DSD4.5-126-150-1100	150V	150-430V	1100	4.5	126	1.25"	<430V	36	300	5
3DSD4.5-145-150-1300	150V	150-430V	1300	4.5	145	1.25"	<430V	36	300	6
3DSD6-90-150-1100	150V	150-430V	1100	6	90	1.5"	<430V	36	300	5
3DSD6-101-150-1300	150V	150-430V	1300	6	101	1.5"	<430V	36	300	6
3DSD7.5-68-150-1100	150V	150-430V	1100	7.5	68	1.5"	<430V	36	300	5
3DSD7.5-80-150-1300	150V	150-430V	1300	7.5	80	1.5"	<430V	36	300	6
3DSD4-180-200-1500	200V	200-430V	1500	4	180	1.25"	<430V	36	340	6
3DSD6-125-200-1500	200V	200-430V	1500	6	125	1.5"	<430V	36	340	6
3DSD7.5-92-200-1500	200V	200-430V	1500	7.5	92	1.5"	<430V	36	340	6

PEPFORMANCE CURVES:

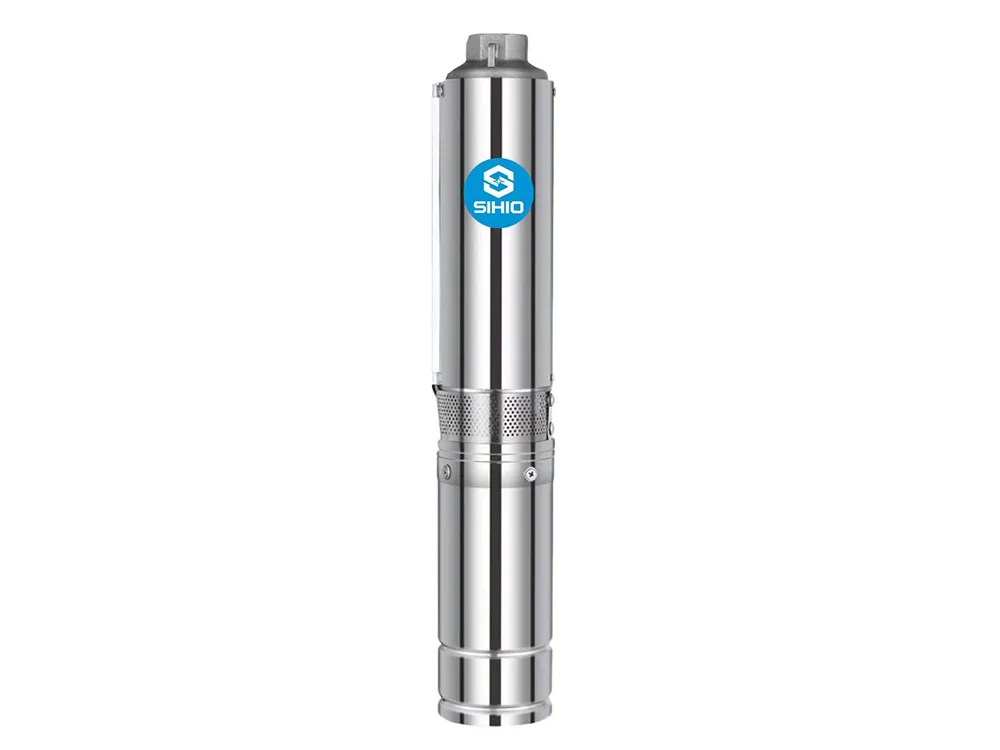

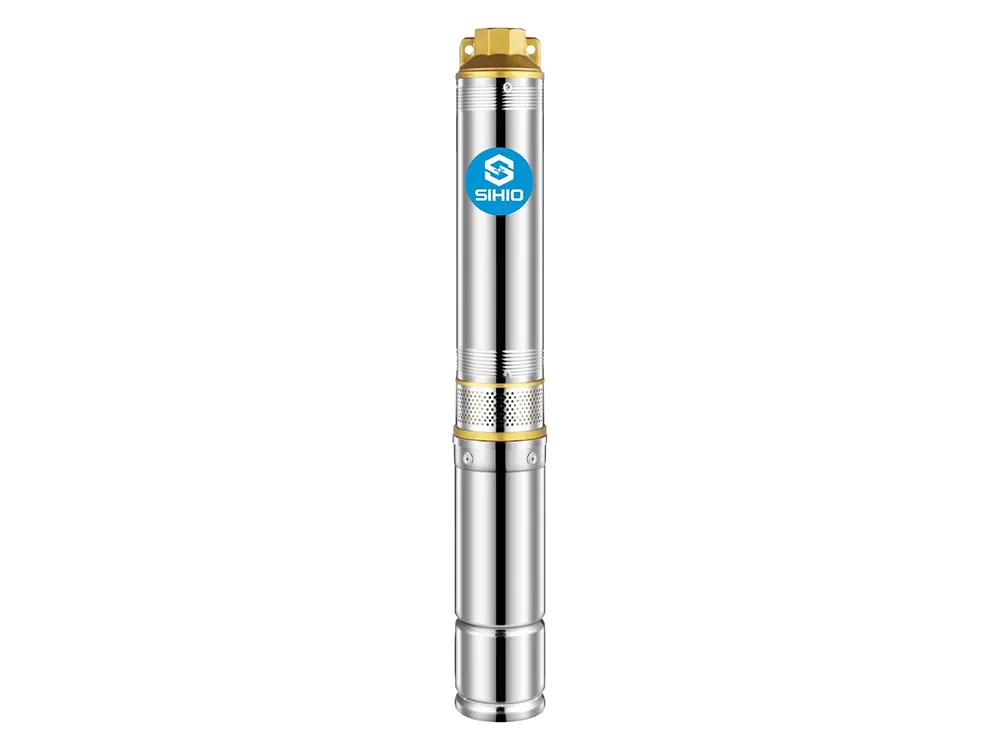

FEATURES OF 3 INCH SOLAR BOREHOLE PUMP:

1.Power input type : Solo Direct Current.

2.Less noisy & high efficiency operation. The solar pumps take permanent magnet Brushless motor. The Current of it is controlled electronically, as this results in less electro-magnettic nosie and high-efficiency performance.

3.Battery is not neccessary in the solar pumpping system. If a battery is planned to be to connected in it, a battery charger ir required.

FUNCTION OF SIHIO SOLAR BOREHOLE WATER PUMPS:

1.Integrated DSP&MPPT(Maximun Power Point remote control etc.

2.Dry running protection

3.Suitable for Wide DC voltage Operation.

4.Battery Operation,low voltage disconnect for battery tracking.

5.Overload and high Adjustable speed control of motor.

6.Temperature Protection and against reverse polarity.

APPLICATION:

1.lrrigation in horticulture & agriculture.

2.Livestok Watering.

3.Gardens or fountains.

4.Domestic water supply.

5.Pond management.

6.Small scale service industries.

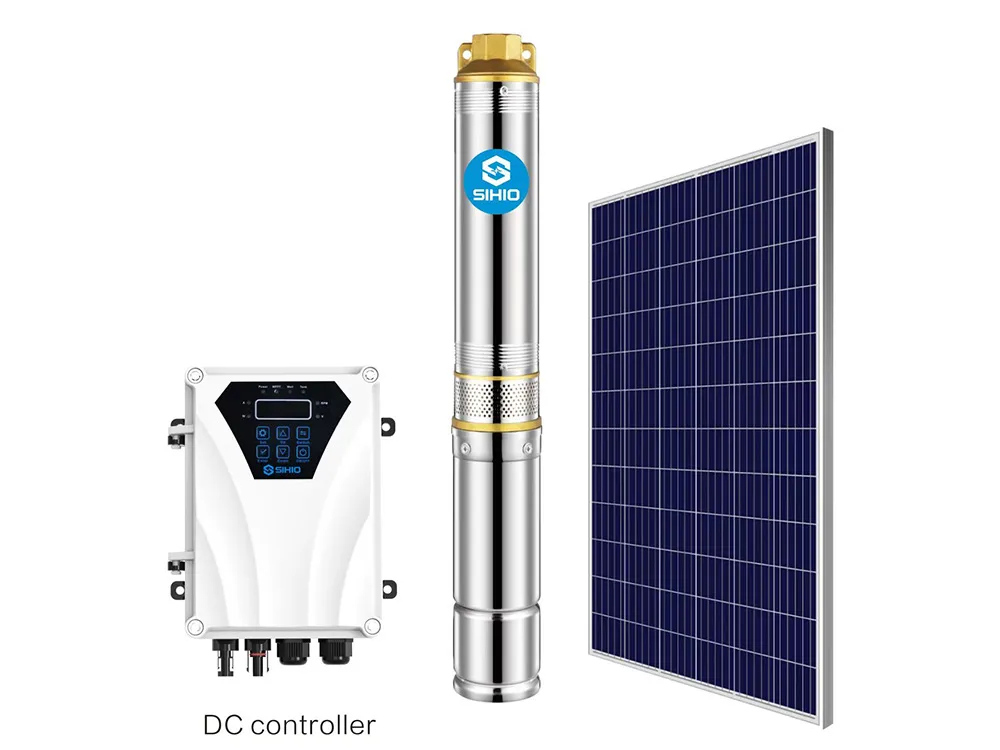

PACKAGE OF SOLAR AC DC POWERED HYBRIDE PERIPHERAL PUMP:

1.Solar powered Deep well pump - 1 piece.

2.Accessary kits - 1 set.

3.DC Controller - 1 piece.

4.User's manual - 1 piece.

ACCESSARY KITS FOR DC QB PERIPHERAL SERIES SOLAR SURFACE PUMP:
