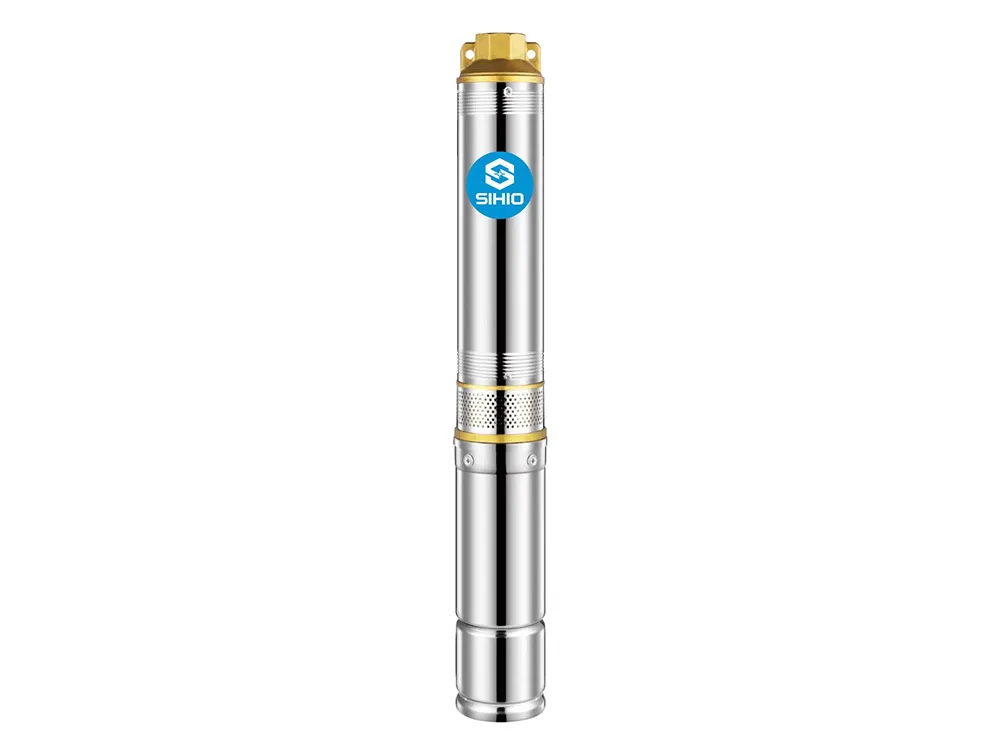

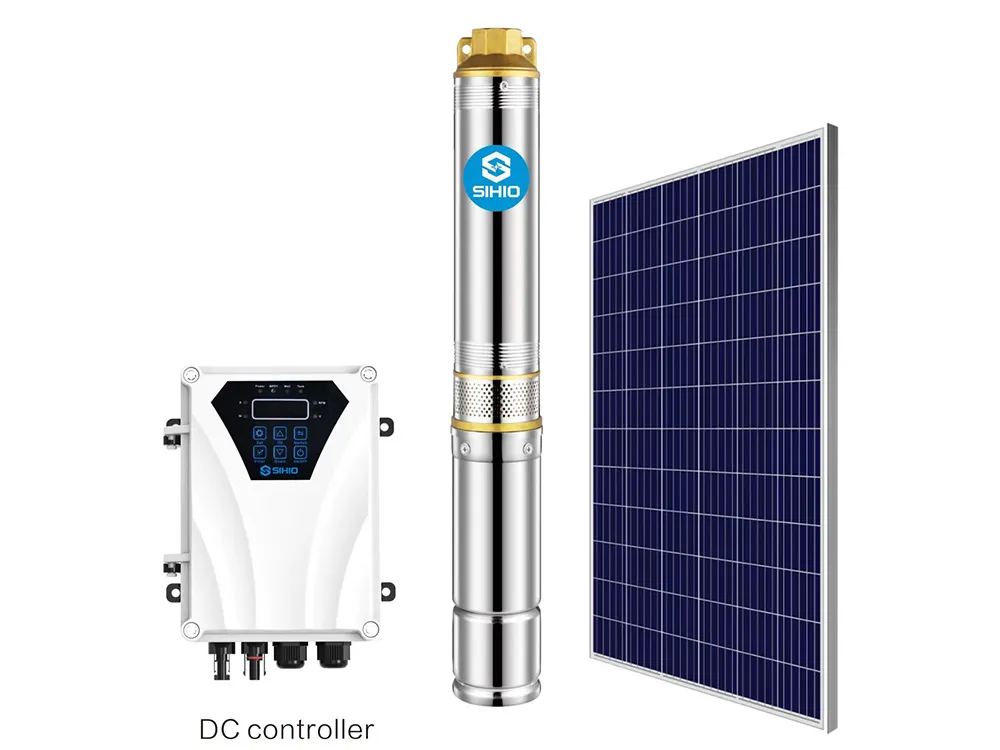

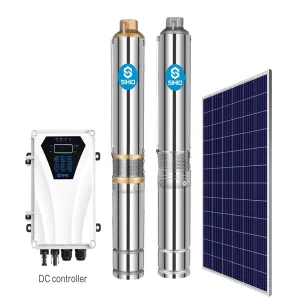

4 inch Permanent Brushless Motor Pump Solar Powered for Fountain

By using solar energy, the submersible pump is put into the well to pump water from the deep well. It can be used for domestic & livestock water supply and agricultural irrigation.

Inquiry

E-mail：sales@sihio.com

WhatsApp：8613705860995

Detailed Description

TECHNICAL DATA OF SOLO DC INPUT SOLAR PERIPHERAL PUMP

ITEM	Voltage(V)	Best input Voltage(DC)	Power(w)	Max. Flow(m³/h)	Max.Head(m)	Outlet(in)	Open circuit voltage(VOC)	Solar Panels Suggestion
ITEM	Voltage(V)	Best input Voltage(DC)	Power(w)	Max. Flow(m³/h)	Max.Head(m)	Outlet(in)	Open circuit voltage(VOC)	Voltage (V)	Power (w)	Quantity (pcs)	Connection
4DSD5.5-40-48-500	48	60-90V	500	5.5	40	1.25”	<100V	36	250	4
4DSD7.5-42-48-600	48	60-90V	600	7.5	42	1.25”	<100V	36	250	4
4DSD7.5-56-48-750	48	60-90V	750	7.5	56	1.25”	<100V	36	250	4
4DSD5.5-68-72-750	72	90-120V	750	5.5	68	1.25”	<150V	36	330	3
4DSD5.5-83-72-750	72	90-120V	750	5.5	83	1.25”	<150V	36	330	3
4DSD5.5-110-72-1100	72	90-120V	1100	5.5	110	1.25”	<150V	36	300	6
4DSD7.5-42-72-600	72	90- 120V	600	7.5	42	1.25”	<150V	36	300	3
4DSD7.5-56-72-750	72	90-120V	750	7.5	56	1.25”	<150V	36	330	3
4DSD7.5-84-72-1100	72	90-120V	1100	7.5	84	1.25”	<150V	36	300	6
4DSD6-50-110-750	110	120-150V	750	6	50	1.25"	<200V	36	330	3
4DSD6-80-110-1100	110	120-150V	1100	6	80	1.25”	<200V	36	300	4
4DSD5.5-127-110-1100	110	120-150V	1100	5.5	127	1.25”	<200V	36	300	6
4DSD5.5-102-110-1300	110	120-150V	1300	5.5	102	1.25”	<200V	36	300	6
4DSD5.5-127-110-1500	110	120-150V	1500	5.5	127	1.25”	<200V	36	300	8
4DSD7.5-50-110-750	110	120-150V	750	7.5	50	1.25”	<200V	36	300	6
4DSD7.5-65-110-1100	110	120-150V	1100	7.5	65	1.25”	<200V	36	300	6
4DSD7.5-85-110-1300	110	120-150V	1300	7.5	85	1.25”	<200V	36	300	6
4DSD7-110-110-1300	110	120-150V	1300	7	110	1.25”	<200V	36	300	6
4DSD9-46-110-750	110	120-150V	750	9	46	2”	<200V	36	300	4
4DSD9-62-110-1100	110	120-150V	1100	9	62	2”	<200V	36	300	6
4DSD9-76-110-1300	110	120-150V	1300	9	76	2”	<200V	36	300	6
4DSD9-90-110-1500	110	120-150V	1500	9	90	2”	<200V	36	300	8
4DSD13-38-110-750	110	120-150V	750	13	38	2”	<200V	36	300	4
4DSD13-49-110-1100	110	120-150V	1100	13	49	2”	<200V	36	300	6
4DSD13-64-110-1300	110	120-150V	1300	13	64	2”	<200V	36	300	6
4DSD13-80-110-1500	110	120-150V	1500	13	80	2”	<200V	36	300	8
4DSD16-45-110-750	110	120-150V	750	16	45	2”	<200V	36	300	4
4DSD16-60-110-1100	110	120-150V	1100	16	60	2”	<200V	36	300	6
4DSD16-70-110-1500	110	120-150V	1500	16	70	2”	<200V	36	300	8
4DSD5.5-68-150-1100	150	150-430V	1100	5.5	68	1.25”	<430V	36	300	5
4DSD7.5-85-150-1100	150	150-430V	1100	7.5	85	1.25”	<430V	36	300	5
4DSD7-110-150-1300	150	150-430V	1300	7	110	1.25”	<430V	36	300	6
4DSD9-55-150-1100	150	150-430V	1100	9	55	2"	<430V	36	300	5
4DSD9-68-150-1300	150	150-430V	1300	9	68	2"	<430V	36	300	6
4DSD13-52-150-1100	150	150-430V	1100	13	52	2"	<430V	36	300	5
4DSD13-68-150-1300	150	150-430V	1300	13	68	2"	<430V	36	300	6
4DSD16-50-150-1100	150	150-430V	1100	16	50	2"	<430V	36	300	5
4DSD16-65-150-1300	150	150-430V	1300	16	65	2"	<430V	36	300	6
4DSD7-135-200-1500	200	200-430V	1500	7	135	2"	<430V	36	340	6
4DSD9-86-200-1500	200	200-430V	1500	9	86	2"	<430V	36	340	6
4DSD13-80-200-1500	200	200-430V	1500	13	80	2"	<430V	36	340	6
4DSD16-75-200-1500	200	200-430V	1500	16	75	2"	<430V	36	340	6
4DSD18-60-200-1500	200	200-430V	1500	18	60	2"	<430V	36	340	6
4DSD7-165-300-2200	300	300-430V	2200	7	165	2"	<430V	36	360	8
4DSD9-125-300-2200	300	300-430V	2200	9	125	2"	<430V	36	500	6
4DSD13-95-300-2200	300	300-430V	2200	13	95	2"	<430V	36	500	6
4DSD16-85-300-2200	300	300-430V	2200	16	85	2"	<430V	36	500	6
4DSD18-70-300-2200	300	300-430V	2200	18	70	2"	<430V	36	500	6
