TECHNICAL DATA OF SOLO DC INPUT SOLAR PERIPHERAL PUMP

ITEM	Voltage(V)	Best input Voltage(DC)	Power(w)	Max. Flow(m3/h)	Max.Head(m)	Outlet(in)	Open circuit voltage(VOC)	Solar Panels Suggestion

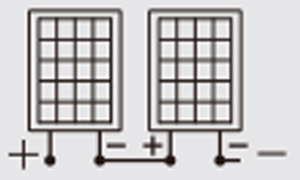

								Voltage (V)	Power (w)	Quantity (pcs)	Connection
3DSP4-35-24-300	24	30-48V	300	4	35	1.25"	＜50V	36	250	2
3DSP4.5-50-48-400	48	60-90V	400	4	50	1.25"	<100V	36	300	2
3DSP4.5-82-48-600	48	60-90V	600	4	80	1.25"	<100V	36	250	4
3DSP4.8-95-72-750	72	90-120V	750	4.8	95	1.25"	<150V	36	330	3
3DSP4.8-95-72-750	72	90-120V	1100	4.8	112	1.25"	<150V	36	300	6
3DSP4.8-115-110-1100	110	120-150V	1100	4.8	112	1.25"	<200V	36	300	6
3DSP4.8-135-110-1500	110	120-150V	1500	4.8	135	1.25"	<200V	36	300	8
3DSP5-112-150-1100	150	150-430V	1100	5	112	1.25"	<430V	36	300	6
3DSP5-126-150-1300	150	150-430V	1300	5	126	1.25"	<430V	36	300	6
3DSP5-138-200-1500	200	200-430V	1500	5	138	1.25"	<430V	36	340	6

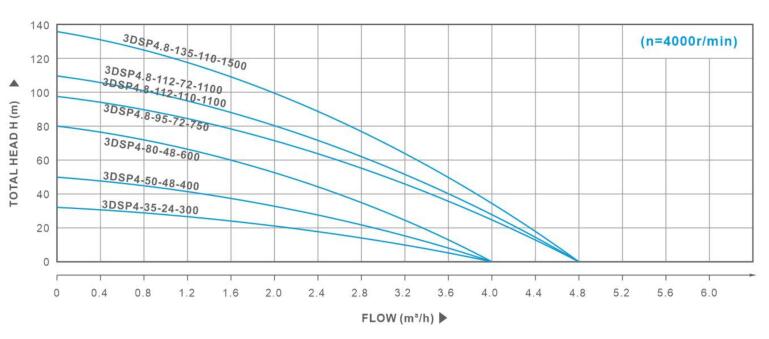

PEPFORMANCE CURVES:

ADVANTAGES OF 3 INCH STAINLESS STEEL IMPELLER:

1.Maintenance-Free Brushless DC Motor.

2.Integrated DSP&MPPT(Maximun Power Point remote control etc.

3. Suitable for Wide DC voltage Operation.

4. Control inputs for well probe, dry running protection.

5. Battery Operation,low voltage disconnect for battery tracking.

6. Overload and high Adjustable speed control of motor.

7. Temperature Protection and against reverse polarity.

FUNCTION OF SIHIO SOLAR BOREHOLE WATER PUMPS:

1.Integrated DSP&MPPT(Maximun Power Point remote control etc.

2.Dry running protection

3.Suitable for Wide DC voltage Operation.

4.Battery Operation,low voltage disconnect for battery tracking.

5.Overload and high Adjustable speed control of motor.

6.Temperature Protection and against reverse polarity.

APPLICATION:

1.lrrigation in horticulture & agriculture.

2.Livestok Watering.

3.Gardens or fountains.

4.Domestic water supply.

5.Pond management.

6.Small scale service industries.

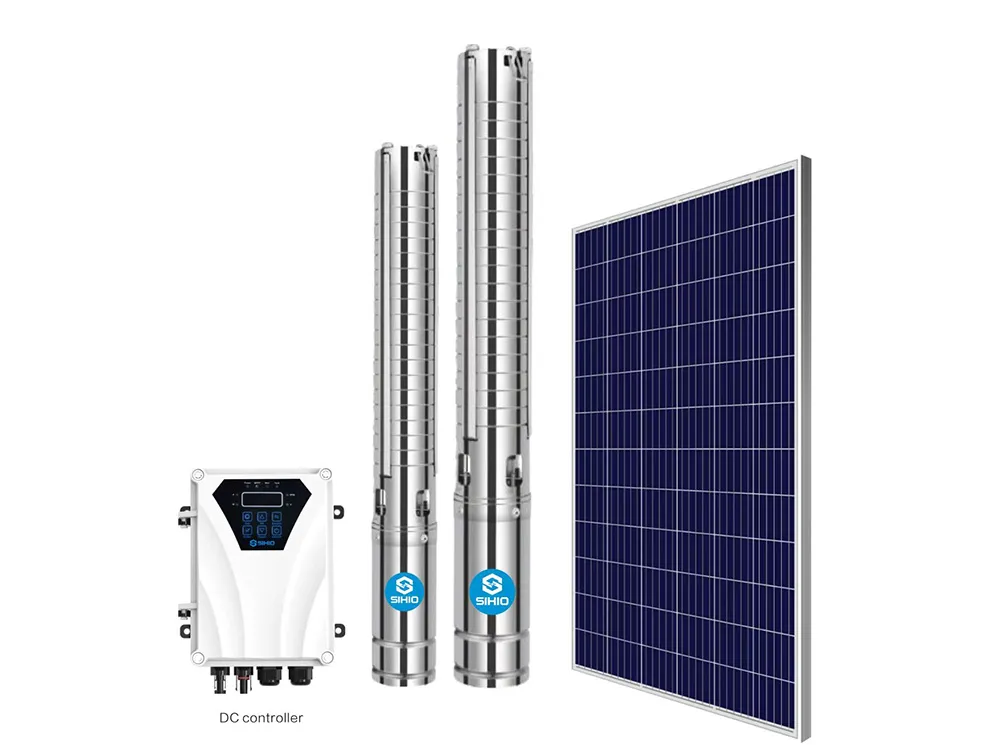

PACKAGE OF SOLAR AC DC POWERED HYBRIDE PERIPHERAL PUMP:

1.Solar powered Deep well pump - 1 piece.

2.Accessary kits - 1 set.

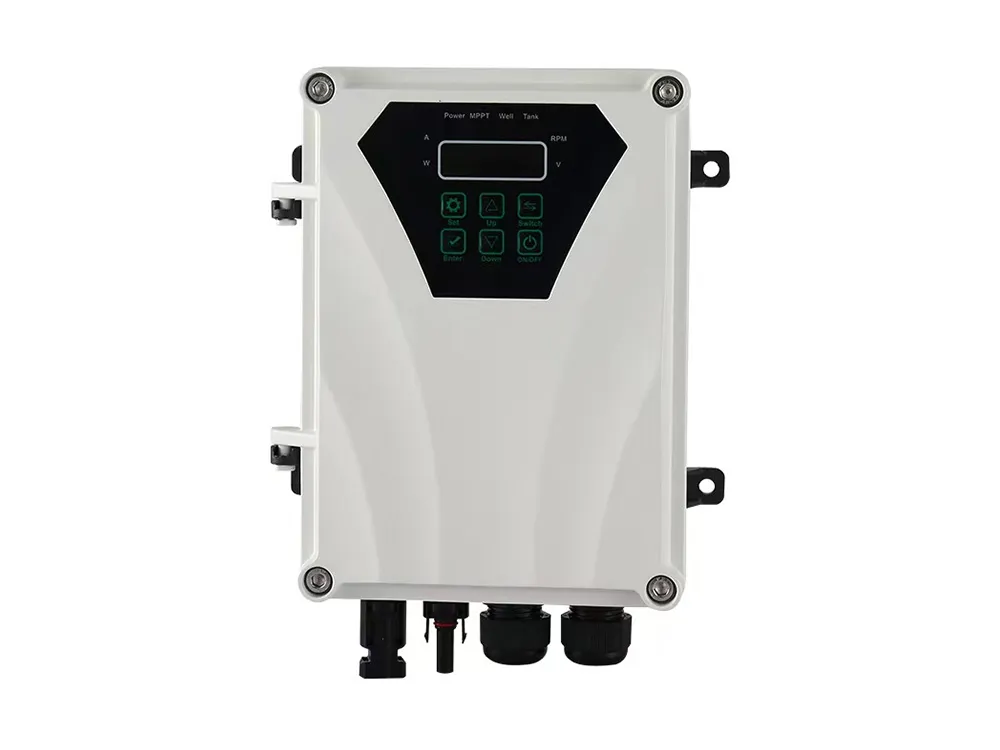

3.DC Controller - 1 piece.

4.User's manual - 1 piece.

ACCESSARY KITS FOR DC QB PERIPHERAL SERIES SOLAR SURFACE PUMP:
