TECHNICAL DATA OF SOLO DC INPUT SOLAR PERIPHERAL PUMP

ITEM	Voltage(V)	Voltage(DC)	Power(w)	Max. Flow(m³/h)	Max.Head(m)	Outlet(in)	Solar Panels Suggestion
							Voltage (V)	Power (w)	Quantity (pcs)	Connection
3SP5-100-110-750-A/D	85V-280V	80V-430V	750	5	100	1.25"	36	340	3
3SP5-112-150-1100-A/D	85V-280V	80V-410V	1100	5	112	1.25"	36	340	5
3SP5-126-150-1300-A/D	85V-280V	80V-410V	1300	5	126	1.25"	36	340	5
3SP5-138-200-1500-A/D	85V-280V	80V-410V	1500	5	138	1.25"	36	340	6

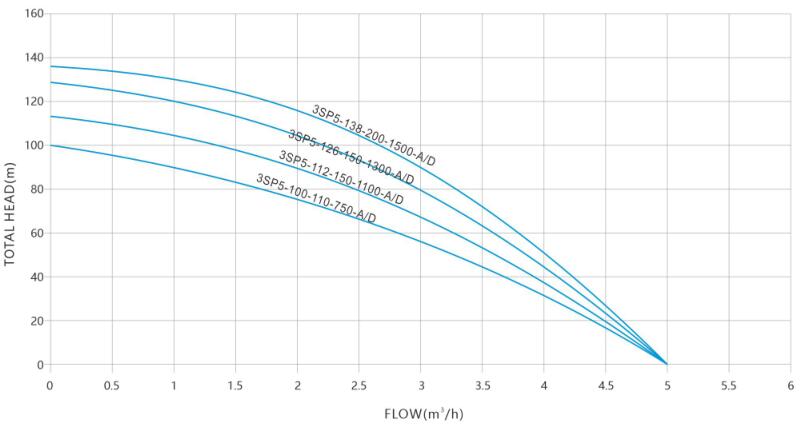

PERFORMANCE CURVE:

DESCRIPTION OF SOLAR PUMP:

1.Motor: Motor coil is made by automatic winding machine with centralized winding technology, which motor efficiency is much improved; The motor takes permanent magnet DC brushless synchronous motor, which efficiency is provide by 15%-20% than normal.

2.Shaft: #304 stainless steel or #316 stainless steel.

3.Bearing: High precision bearing, which prolong the working life of solar pump.

4.Motor base: Double bearing motor base which can work under more axial pressure.

5.Mechancial seal: Alloy mechanical seal which provide the solar hybrid pump longer working life and higher reliability

6.Impeller: Closed. #304 / #316 stainless steel impeller.

7.Cable wire: Customized. Blue flat cable wire / round black cable wire;

8.Controller/ Inverter: Customized. AC DC Auto switch / AC DC Hybrid complementary controller.

WORKING ENVIRONMENT OF SOLAR AC DC HYBRID PUMP:

1.Fluid temperature: 0 - (+)60 °C

2.Working temperature: (-)15°C - (+)60°C

3.IP: IP66

4.ICL: F

5.Sand Potection: 25%

FUNCTIONS:

1.Intelligent water shortage protection. The pump stops working automatically when there is no water in the well, and automatically start to work in 30 minutes.

2.MPPT. Maximium Power Point Track, Which can ultiliz the power of solar PV system.

3.LED Display. It can show Power, voltage, speed on the surface of controller.

4.Automatically soft start and stop working.

5.Water proof and leak-proof.

6.High Voltage / Low Voltage / Over Current / High Temperature protection.

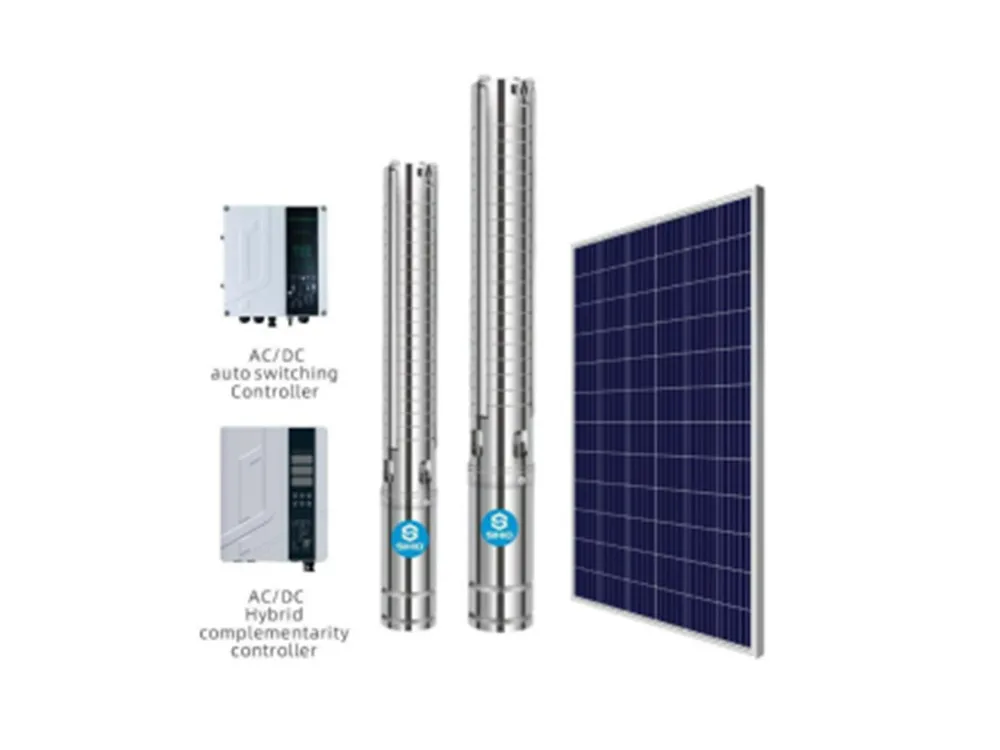

PACKAGE OF 1 SET AC DC SOLAR SUMBERSIBLE PUMP
Free accessary kits		1 set	packed inside the box of solar pump
User's manual		1 piece	packed inside the box of solar pump
3 inch solar pump		1 piece	Wooden  packing  or carton packing
AC DC  Auto switch Controller Or AC DC Hybrid complementary Controller		1 piece	Sololy Carton packing
