INSTRUCTIONS
1.PH value： 5-9
2.Ambient temperature: -10-50℃
3.Liquid temperature: -10-120℃
4.Relative humidity: max.85% (RH)
5.Inlet pressure: must be lower than the starting value of pressure switch

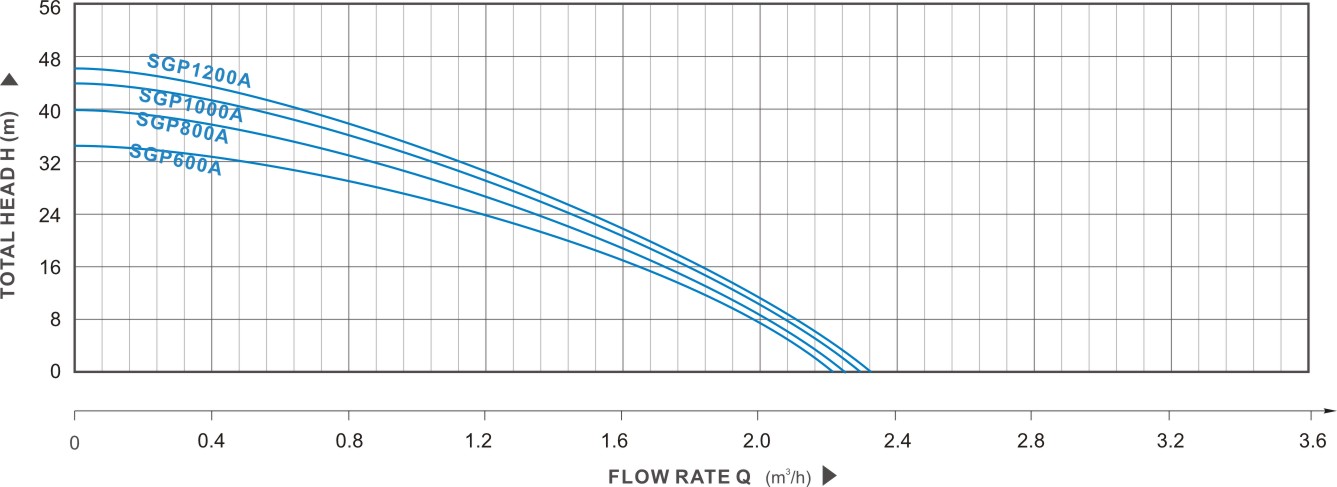

PERFORMANCE DATA AT n=2900 rpm/min
PERFORMANCE PARAMETER
Model | Inlet/Outlet | Power | Max.Head | Max.Flow | Max.Suction | Pressure Switch | |
Single phase | Inch | KW | HP | m | m³/h | m | kg/cm² |
SGP600A | 1"x1" | 0.6 | 0.8 | 35 | 2.8 | 7 | 1.2-3.0 |
SGP800A | 1"x1" | 0.8 | 1.0 | 40 | 3.0 | 8 | 1.2-3.0 |
SGP1000A | 1"x1" | 1.0 | 1.5 | 44 | 3.2 | 8 | 1.2-3.0 |
SGP1200A | 1"x1" | 1.2 | 1.8 | 46 | 3.5 | 8 | 1.2-3.0 |
