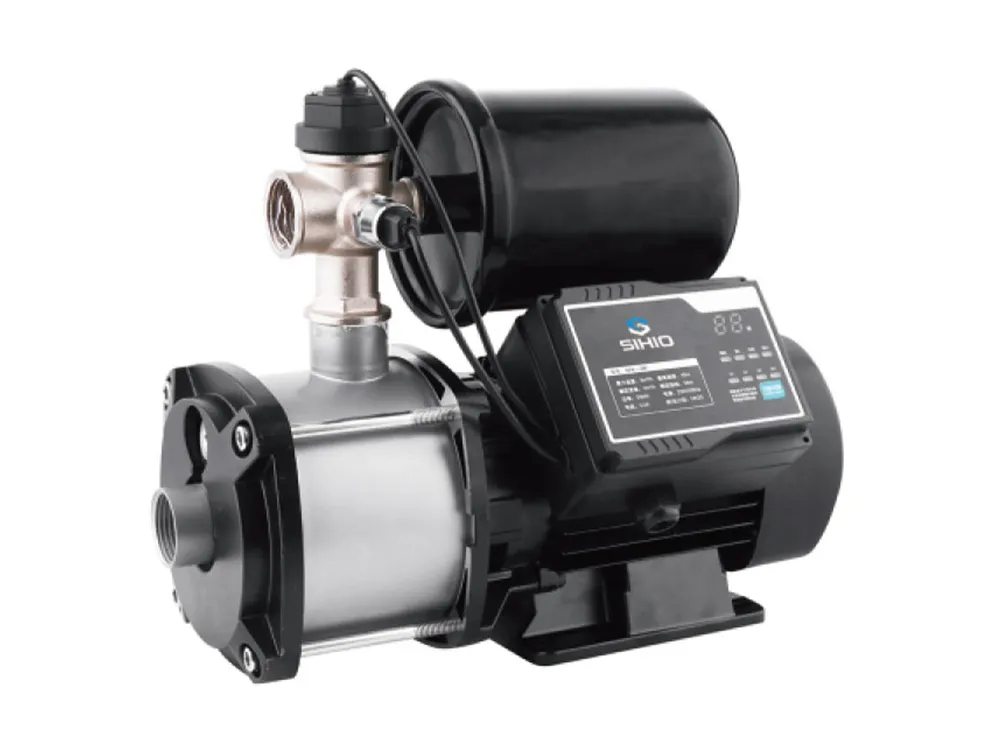

Fully intelligent, ultra quiet stainless steel multi-stage pump, dual automatic control function of pressure and water flow, PCB dry running protection, timing memory function, free you from the trouble of installation and debugging, quiet operation below 50 dB, refuse noise pollution, flow passage components adopt sanitary stainless steel, eliminate water rust, high-end electric pump, high-end quality, leading you comfortable life.
SERVICE CONDITIONS
1.PH value： 5-9
2.Ambient temperature: -10-50℃
3.Liquid temperature: -10-120℃
4.Relative humidity: max.85% (RH)
5.Inlet pressure: must be lower than the starting value of pressure switch

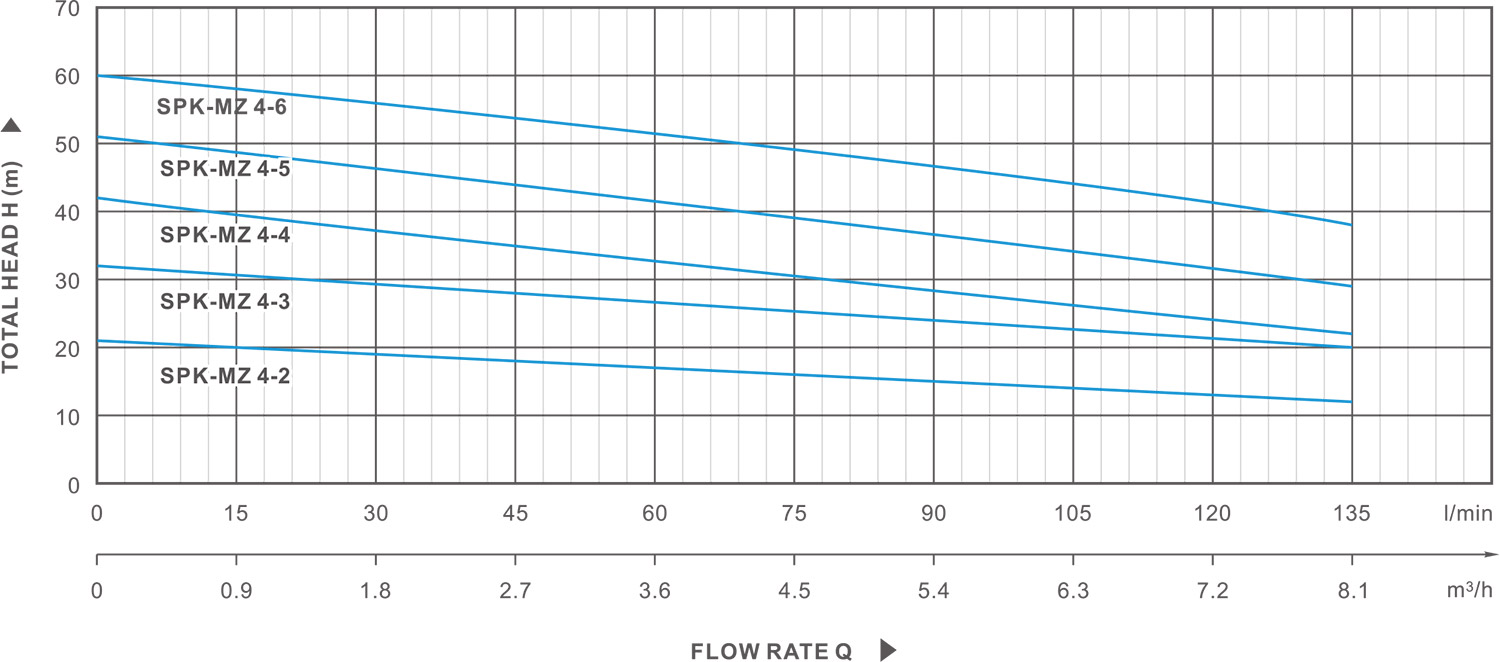

PERFORMANCE DATA AT n=2900 rpm/min
PERFORMANCE PARAMETER
Model | Inlet/Outlet | Power | Q(m³/h) | 0.9 | 1.5 | 2.1 | 2.4 | 3.0 | 3.6 | 3.9 | 4.5 | 5.1 | 5.4 | 8.1 | |
Single phase | Inch | kW | HP | (L/min) | 15 | 25 | 35 | 40 | 50 | 60 | 65 | 75 | 85 | 90 | 135 |
SPK-MZ 4-2 | 1"x1" | 0.37 | 0.5 | H(m) | 21 | 20 | 19.5 | 19 | 18 | 17.5 | 17 | 15.5 | 15 | 13 | 12 |
SPK-MZ 4-3 | 1"x1" | 0.55 | 0.75 | 32 | 30.5 | 30 | 29 | 28.5 | 27.5 | 27 | 25 | 24 | 22 | 20 | |
SPK-MZ 4-4 | 1"x1" | 0.75 | 1.1 | 42 | 39 | 38 | 36 | 35.5 | 34 | 32 | 30 | 29 | 26 | 22 | |
SPK-MZ 4-5 | 1"x1" | 1.1 | 1.5 | 51 | 48 | 47 | 46 | 44.5 | 43 | 42 | 38 | 37 | 34 | 29 | |
SPK-MZ 4-6 | 1"x1" | 1.1 | 1.5 | 60 | 57 | 56 | 55 | 54.5 | 53 | 51 | 47 | 46 | 44 | 38 | |
