INSTRUCTIONS

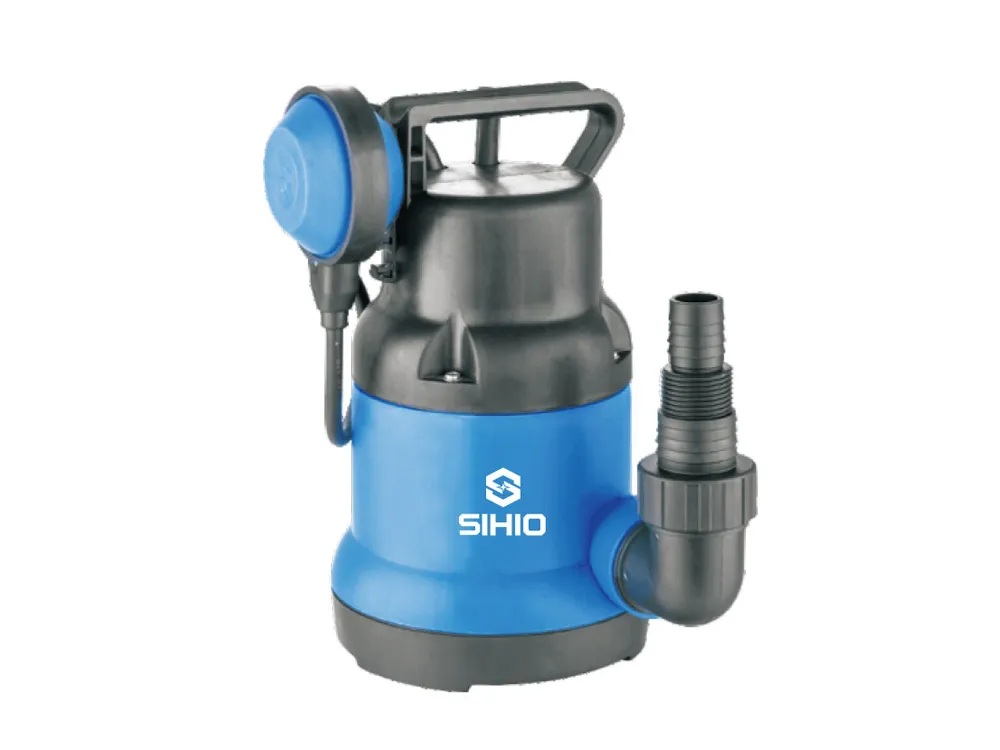

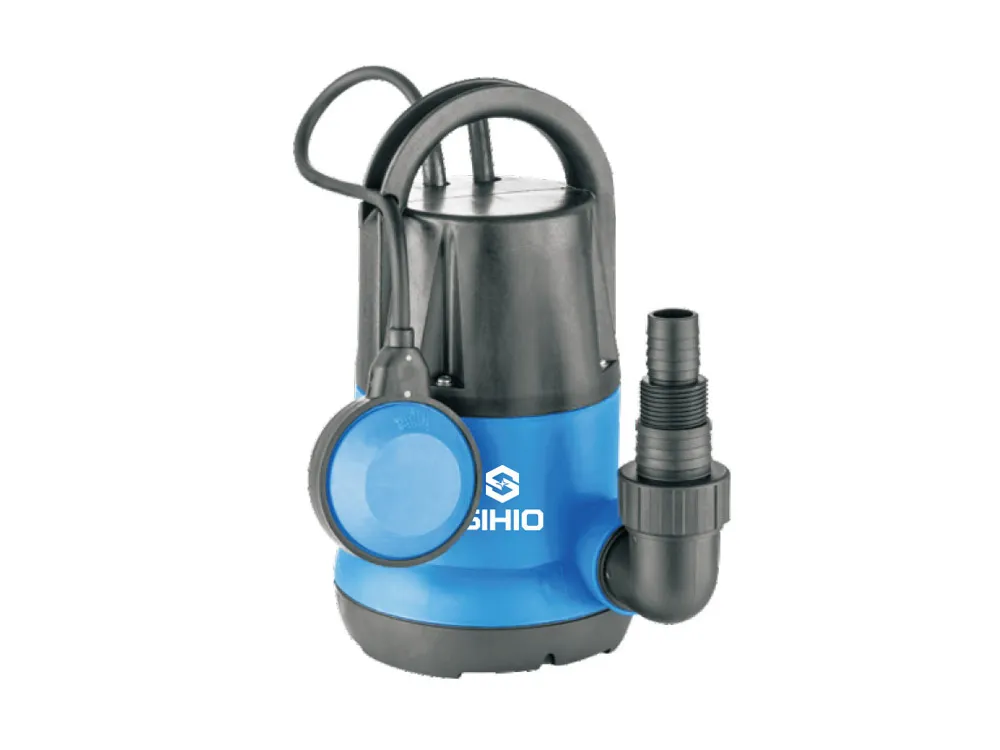

Submersible pump with plastic pump housing and floater switch for cleanwater application only.

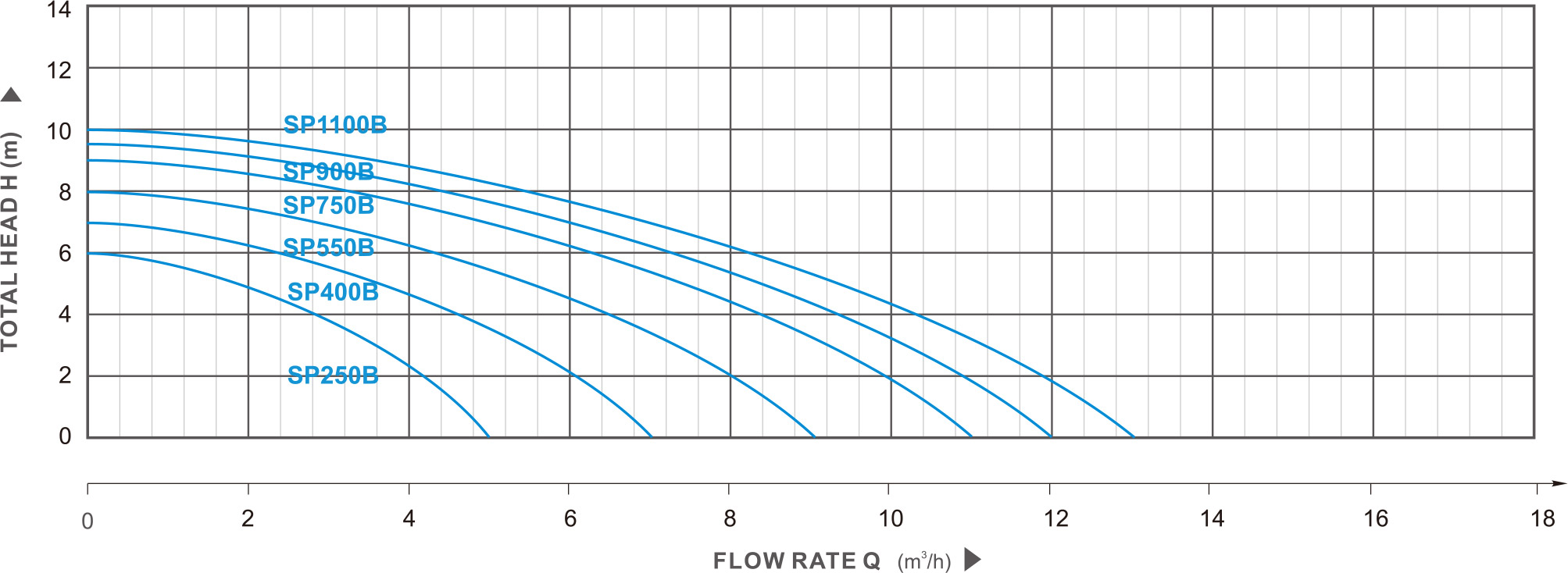

PERFORMANCE DATA AT n=2900 rpm/min
PERFORMANCE PARAMETER
Model | Inlet/Outlet | Power | Max.Head | Max.Flow | Through particles | Max.Diving depth | |
Single phase | Inch | KW | HP | m | m3/h | mm | m |
SP250B | 1-1/2" | 0.25 | 0.33 | 6 | 5 | 5 | 5 |
SP400B | 1", G",1-1/2" | 0.40 | 0.60 | 7 | 7 | 5 | 7 |
SP550B | 1-1/2" | 0.55 | 0.75 | 8 | 9 | 5 | 7 |
SP750B | 1-1/2" | 0.75 | 1.0 | 9 | 11 | 5 | 1 |
SP900B | 1", G",1-1/2" | 0.9 | 1.3 | 9.5 | 12 | 5 | 7 |
SP1100B | T',G",1-1/2" | 1.1 | 1.5 | 10 | 13 | 5 | 7 |
