INSTRUCTIONS

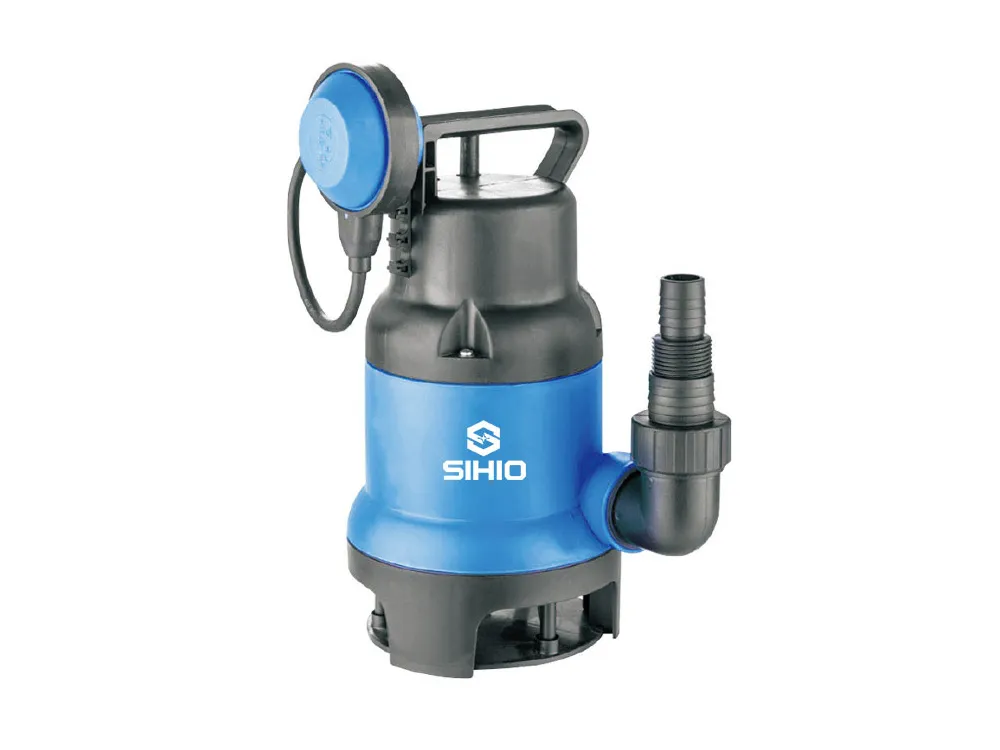

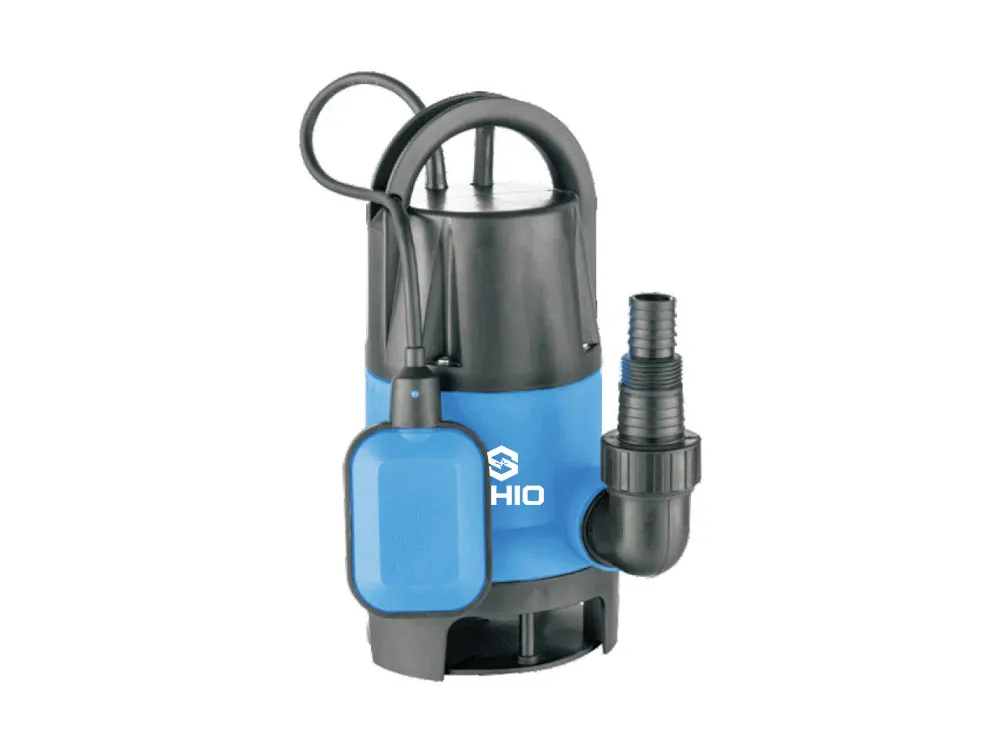

Submersible pump with plastic casing.
Float switches are only used for sewage applications.
PERFORMANCE DATA AT n=2900 rpm/min
PERFORMANCE PARAMETER
Model | Inlet/Outlet | Power | Max.Head | Max.Flow | Through particles | Max.Diving depth | |
Single phase | Inch | KW | HP | m | m3/h | mm | m |
SP400-W | 1", G", 1-1/2" | 0.40 | 0.60 | 5 | 7.5 | 35 | 5 |
SP550-W | 1", G", 1-1/2" | 0.55 | 0.75 | 7 | 10.5 | 35 | 7 |
SP750-W | 1", G", 1-1/2" | 0.75 | 1.0 | 8 | 12.5 | 35 | 7 |
SP900-W | 1", G", 1-1/2" | 0.9 | 1.3 | 9 | 14 | 35 | 1 |
SP1100-W | 1", G", 1-1/2" | 1.1 | 1.5 | 9.5 | 15 | 35 | 7 |
