INSTRUCTIONS

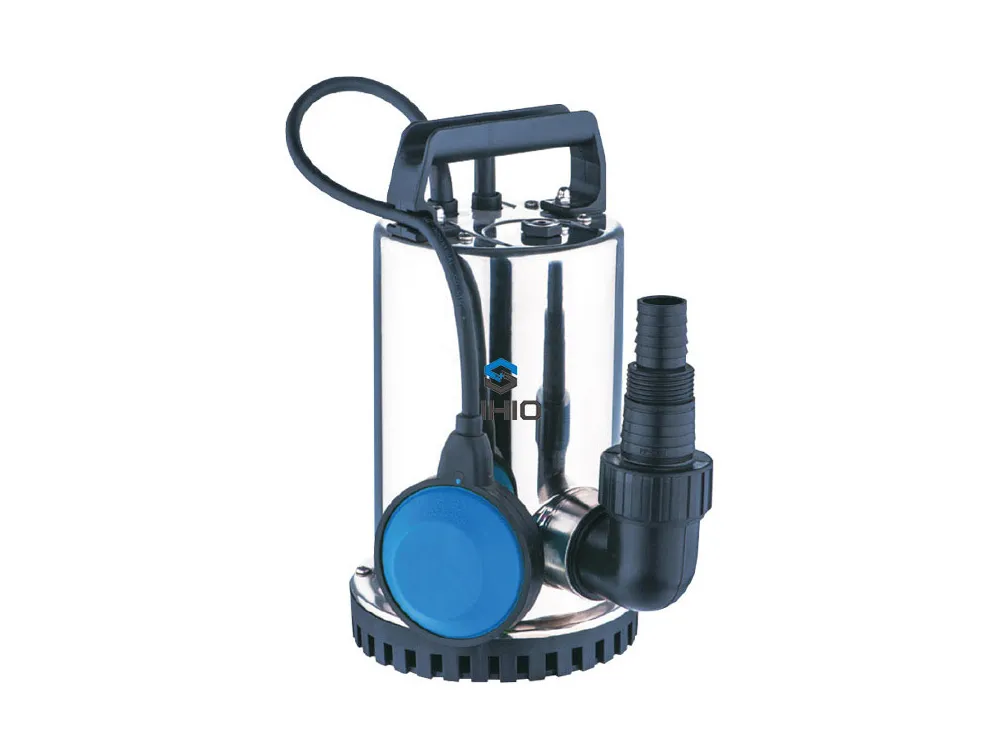

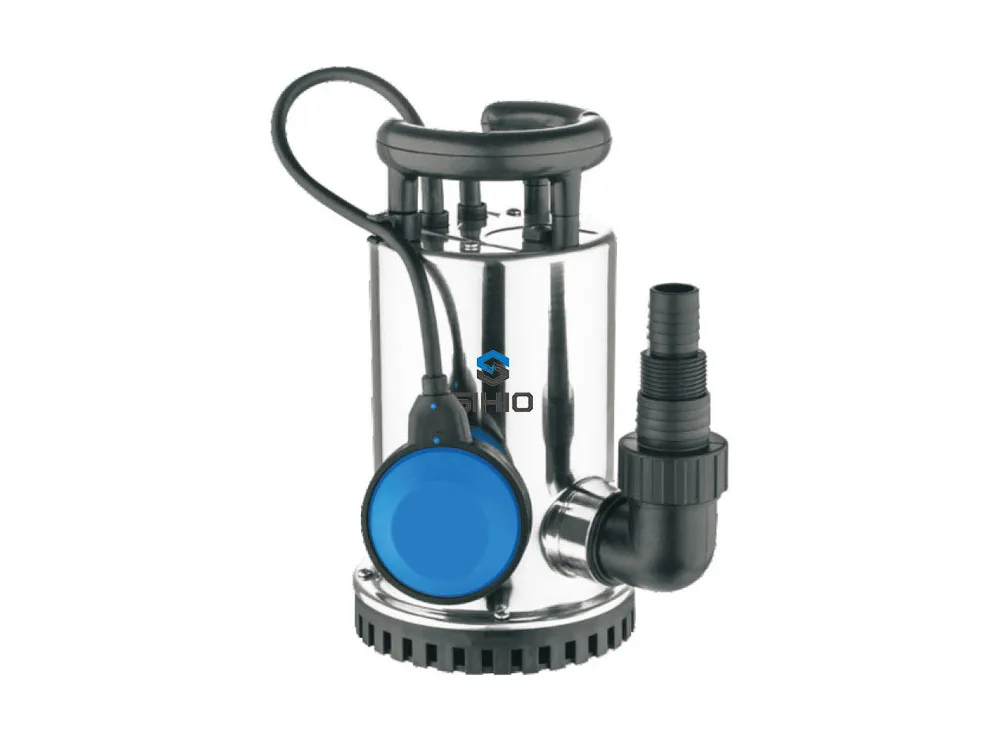

Submersible pump with stainless steel pump body and plastic casing and floater switch for clean water application only. This pump is equipped with a very thin pump base which could sucking to the lowest water level 5mm.
PERFORMANCE DATA AT n=2900 rpm/min
PERFORMANCE PARAMETER
Model | Inlet/Outlet | Power | Max.Head | Max.Flow | Through particles | Max.Diving depth | |
Single phase | Inch | KW | HP | m | m3/h | mm | m |
SSP250A | 1",G"1-1/2" | 0.25 | 0.33 | 6 | 5 | 5 | 5 |
SSP400A | 1",G"1-1/2" | 0.40 | 0.60 | 6.5 | 7 | 5 | 7 |
SSP550A | 1",G"1-1/2" | 0.55 | 0.75 | 7.5 | 8.5 | 5 | 7 |
SSP750A | 1",G"1-1/2" | 0.75 | 1.0 | 8.5 | 10.5 | 5 | 7 |
| SSP900A | 1",G"1-1/2" | 0.9 | 1.3 | 9 | 11.5 | 5 | 7 |
| SSP1100A | 1",G"1-1/2" | 1.1 | 1.5 | 9.5 | 12.5 | 5 | 7 |
