INSTRUCTIONS

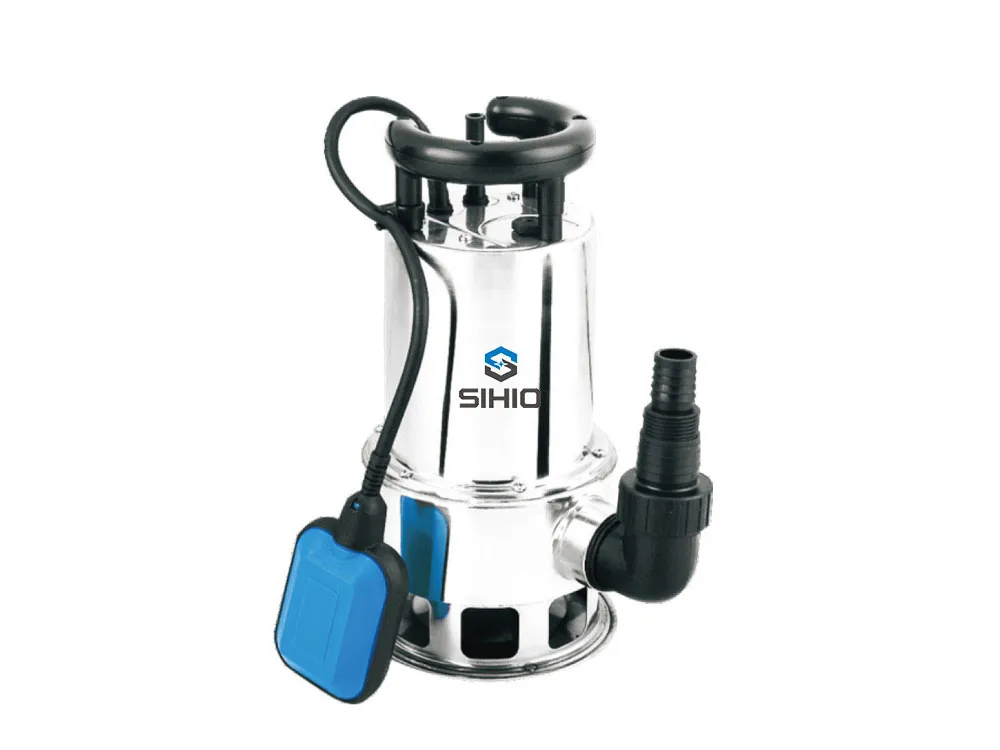

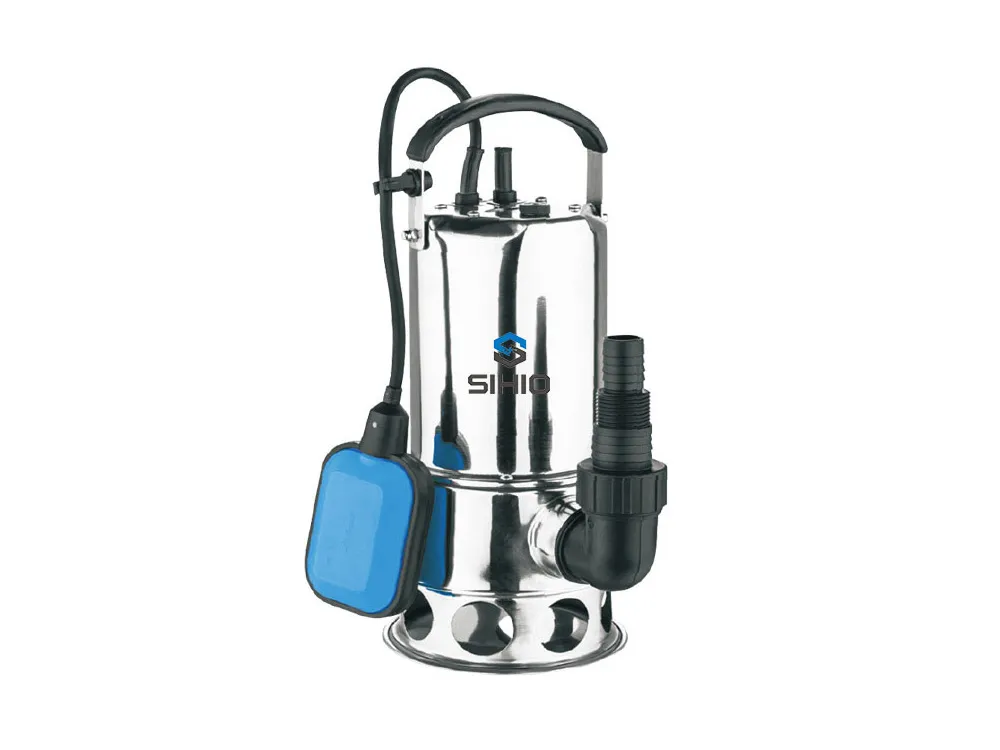

Submersible pump with stainless steel pump body and plastic casing and aqua sensor switch for dirty water application.

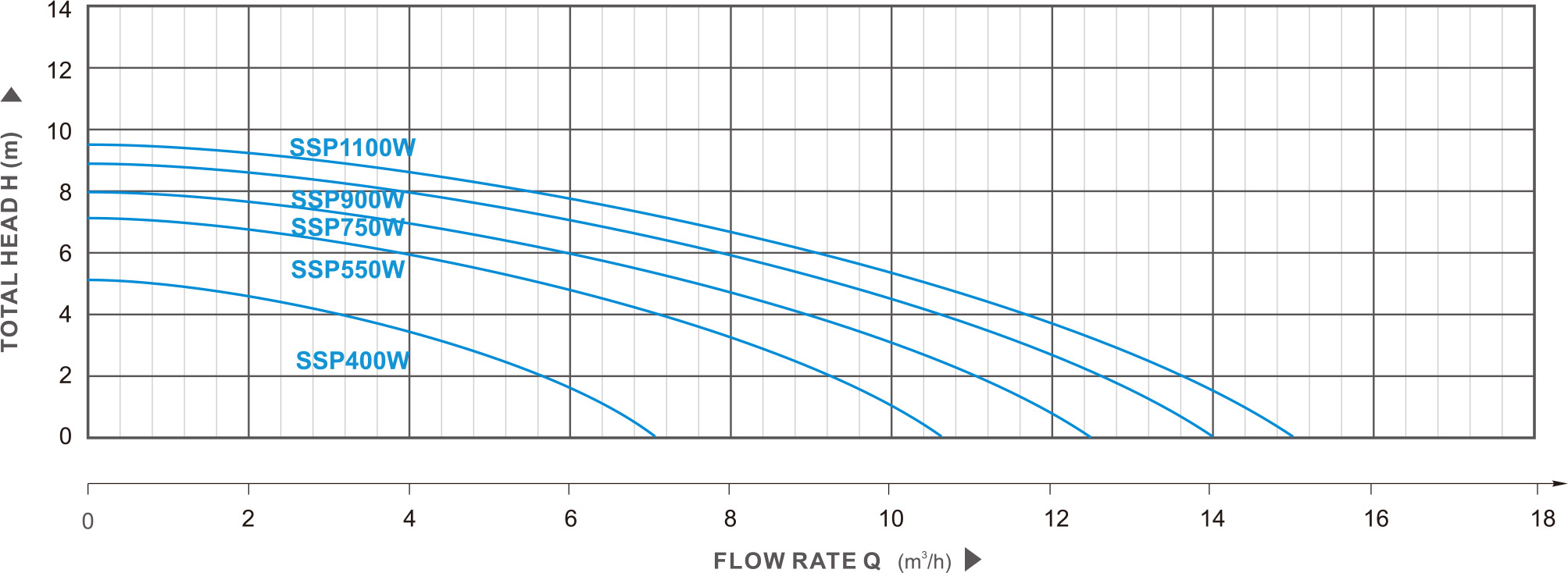

PERFORMANCE DATA AT n=2900 rpm/min
PERFORMANCE PARAMETER
Model | Inlet/Outlet | Power | Max.Head | Max.Flow | Through particles | Max.Diving depth | |
Single phase | Inch | KW | HP | m | m3/h | mm | m |
SSP400W | 1",G"1-1/2" | 0.40 | 0.60 | 5 | 7.5 | 35 | 5 |
SSP550W | 1",G"1-1/2" | 0.55 | 0.75 | 7 | 10.5 | 35 | 7 |
SSP750W | 1",G"1-1/2" | 0.75 | 1.0 | 8 | 12.5 | 35 | 8 |
SSP900W | 1",G"1-1/2" | 0.9 | 1.3 | 9 | 14 | 35 | 8 |
SSP1100W | 1",G"1-1/2" | 1.1 | 1.5 | 9.5 | 15 | 35 | 8 |
